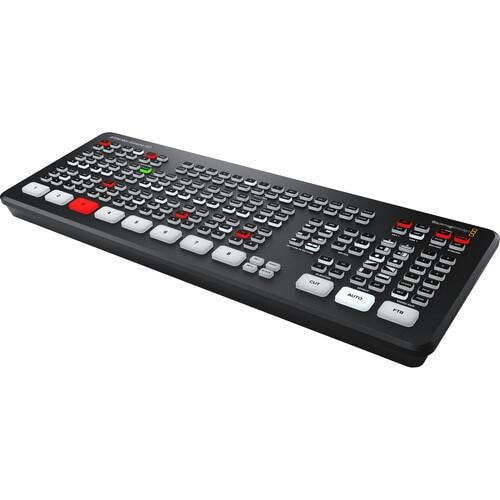

Blackmagic Design ATEM Mini Extreme ISO (BMD-SWATEMMINICEXTISO)

Brand: Blackmagic Design
P\N: BMD-SWATEMMINICEXTISO
UPC: 9338716007305

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

Blackmagic Design ATEM Mini Extreme ISO (BMD-SWATEMMINICEXTISO)

Elevate your live production with the Blackmagic Design ATEM Mini Extreme ISO. This switcher not only offers all the features of the ATEM Mini Extreme but also includes 9 record streams for clean feed recording of all inputs. It integrates seamlessly with DaVinci Resolve, allowing for easy relinking to Blackmagic RAW files for Ultra HD post-production.

Key Features:

Multiple Camera Connections: Supports up to 8 high-quality camera inputs for diverse live streaming and presentation setups.
ISO Recording: Simultaneously records multiple video streams, including all input feeds and the program output, complete with metadata for easy post-event editing.
DaVinci Resolve Integration: Comes with a saved DaVinci Resolve project file for advanced editing and color grading.
Broadcast Quality Switcher: Compact, all-in-one design with intuitive controls for source selection, video effects, and transitions.
Advanced Outputs: Features HDMI and USB outputs for direct streaming and high-quality video output.
Streaming Capabilities: Built-in streaming engine for live broadcasting over Ethernet to platforms like YouTube, Facebook, and Twitch.

Ideal for professional broadcasters and content creators seeking a powerful, yet portable live production solution with advanced recording and editing capabilities.

What's in the Box:

ATEM Mini Extreme ISO
External 12V DC power supply with international socket adapters

Interested in learning more about this product?Check out our blog!

Features

9 record streams for clean feeds of all inputs
DaVinci project saved for editing and relinking to Blackmagic RAW files for Ultra HD finishing
8 high-quality video camera inputs
Built-in DVE for exciting picture in picture effects
USB that works like a webcam for use with any streaming software
Lightweight carbon fiber polycarbonate composite design
Multifunction grip with fingertip controls
Self-contained broadcast quality switcher
Ability to connect up to 8 independent cameras
Outputs to HDMI video and USB webcam
Live stream via Ethernet on ATEM Mini Pro
Record direct to USB flash disks with ATEM Mini Pro
Professional broadcast transitions
Built-in graphics with Photoshop plug-in
Includes new ATEM Advanced Chroma Key
Powerful SuperSource Processing
Built-in audio mixer with 6 band EQ, compressor, and limiter

Specifications

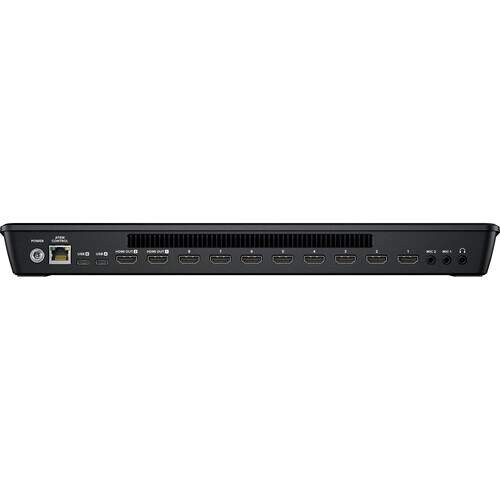

Connections

Total Video Inputs

Total Outputs

Total Aux Outputs

Total Audio Inputs

2 x 3.5mm stereo mini jack.

Total Audio Outputs

1 x 3.5mm stereo mini jack.

Timecode Connection

None

HDMI Video Inputs

8 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.

Video Input Re-Sync

On all 8 HDMI inputs.

Frame Rate and Format Converters

On all 8 HDMI inputs.

HDMI Program Outputs

Ethernet

Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

Computer Interface

2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

Standards

HD Video Input Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HD Video Output Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Video Streaming Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards

None

Video Sampling

4:2:2 YUV

Color Precision

10-bit

Color Space

Rec 709

HDMI Input Resolutions from Computers

1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
1920 x 1080i 50, 59.94Hz and 60Hz

Colorspace Conversion

Hardware based real time.

Product Specifics

Upstream Keyers

Downstream Keyers

Advanced Chroma Keyers

Up to 4

Linear/Luma Keyers

Up to 4

Transition Keyer

DVE only.

Total Number of Layers

Pattern Generators

Color Generators

DVE With Borders and Drop Shadow

Interface

Minimum monitor resolution of 1366 x 768.

Audio

Audio Mixer

11 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Analog Input

Unbalanced stereo

Analog Input Delay

Up to 8 frames

Input Impedance

1.8k

Max Input Level

+6dBV

Mic Plug In Power

Available on both 3.5mm mini jack connections.

Streaming

Direct Streaming

ATEM Mini Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.

Recording

Direct Recording Video and Audio

USB-C 3.1 Gen 1 expansion port can record directly to external media.

Video Recording

8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.

1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.

Audio Recording

10 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x HDMI 2 channel embedded audio inputs.

Switching

Program switching recorded as a DaVinci Resolve project .drp file.

Media Format

Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

Multi View Monitoring

Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.

Multi View Video Standard

Media Player

Media Players

Channels

Fill and key for each Media Player.

Media Pool Still Image Capacity

20 with fill and key.

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF.

Control

Control Panel

Built in control panel. Software control panel with camera control included. Supports optional hardware panel.

Control Panel Connection

Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Extreme ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.

Control Panel Compatibility

Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Extreme ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
