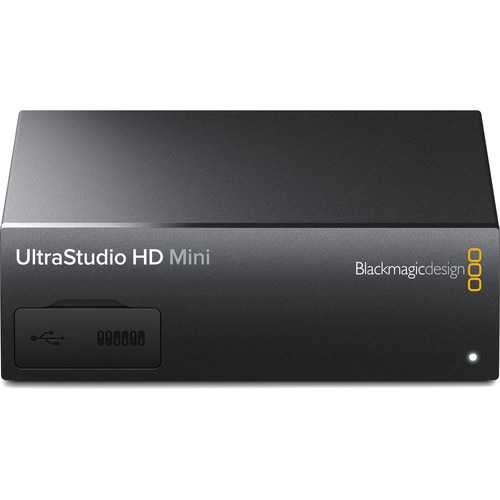

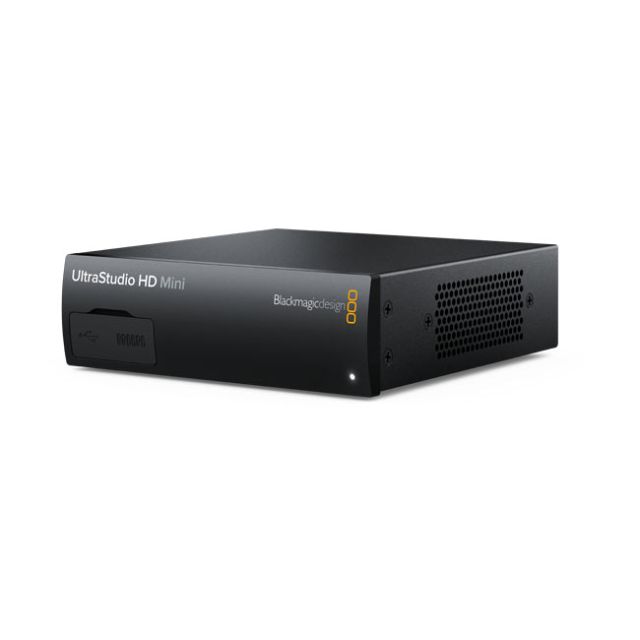

Blackmagic Design UltraStudio HD Mini Recording Device (BMD-BDLKULSDMINHD)

Blackmagic Design UltraStudio HD Mini Recording Device (BMD-BDLKULSDMINHD)

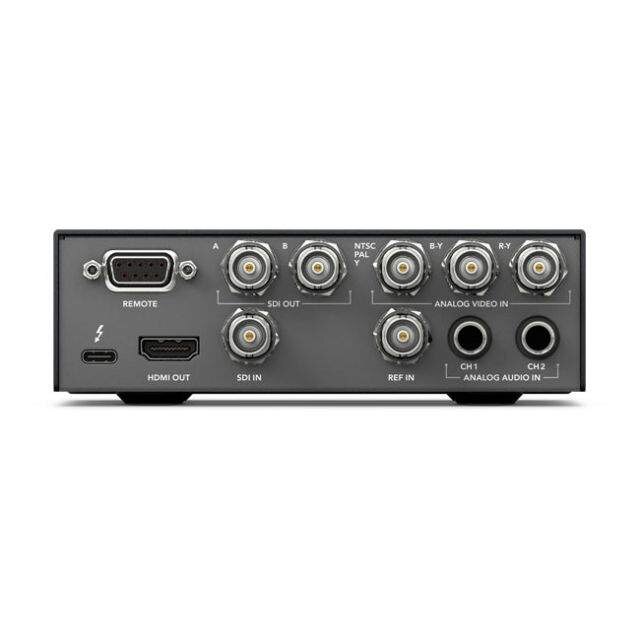

UltraStudio HD Mini features professional broadcast quality connections that include 3G-SDI, analog YUV and composite NTSC/PAL video inputs, along with a reference input. There are also two ¼” audio connections for analog audio input that work with balanced and HiFi sources. In addition, UltraStudio HD Mini can remote control professional broadcast decks using the built in RS-422 connection. For output, you get dual link 3G-SDI with fill and key, and an HDMI connection for monitoring video with a big screen television!

Control

Use the DIP switches on the front panel or the RS-422 deck control port on the rear for software control. The separately available Teranex Mini Smart Panel can be purchased separately and can be used to control the UltraStudio Mini as well as for confidence monitoring.

Processing

Color Space Conversion: Hardware based real time.

HD Down Conversion: Real time 10-bit hardware down conversion on SDI B output, Composite and S-Video when working in HD video formats on playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.

Real-Time Effects Support

Final Cut Pro X internal effects
Premiere Pro CC Mercury Playback Engine effects
Avid Media Composer internal effects
DaVinci Resolve

Thunderbolt 3 Connectivity

Connects via Thunderbolt 3 to stream video. Bus-power over Thunderbolt 3 is sufficient to power the UltraStudio Mini, no separate power supply is required.

What's in the Box:

• UltraStudio HD Mini
• DaVinci Resolve SD card
• Welcome wallet with QR code for software download

• Equipped with a variety of connections including 3G-SDI, analog YUV, composite NTSC/PAL, and reference input, offering versatility in video input options.
• Features two 1/4" audio connections, providing high-quality audio recording capabilities.
• Can remote control professional broadcast decks using the built-in RS-422 connection, offering convenience and efficiency in video production.
• Features a dual link 3G-SDI with fill and key and HDMI output connectors, enabling high-quality video output.
• Connects via Thunderbolt 3 to stream video without the need for a separate power supply, offering convenience and portability.
• Supports a variety of software applications including Final Cut Pro X, Premiere Pro CC, After Effects CC, and many more, providing flexibility and compatibility in video editing and production.
