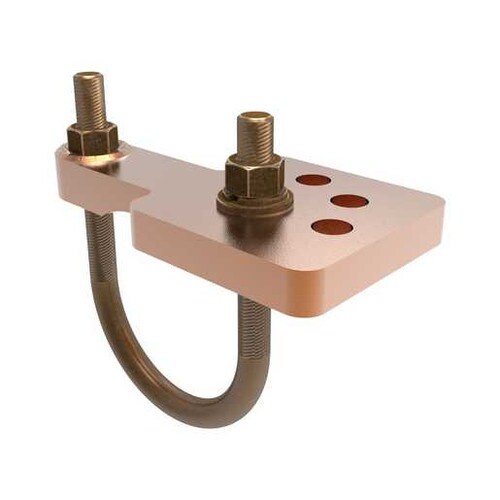

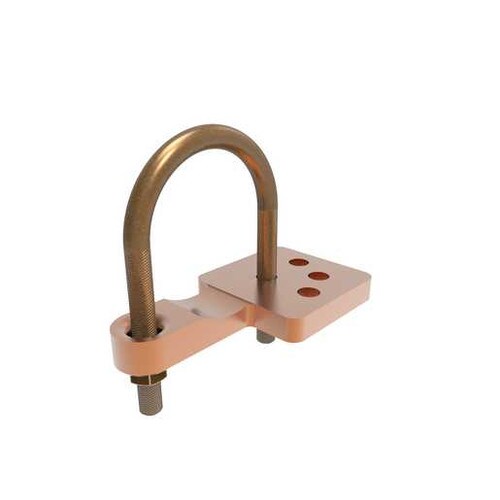

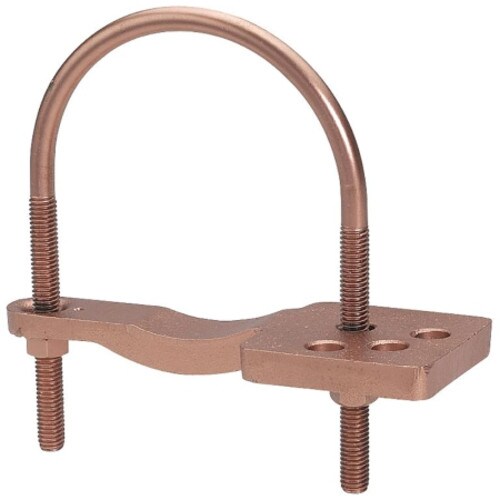

BURNDY 1.25-2 Inch Pipe Ground Clamp (GAR3903TC)

BURNDY 1.25-2 Inch Pipe Ground Clamp (GAR3903TC)

Water Pipe Ground Connector, 1-1/4" - 2" Rod, Large, smooth connector contact area between pipe and ground clamp

Key Features:

• Large, smooth connector contact area between pipe and ground clamp to maximize contact area between connector and pipe
• Pre-drilled pad for 2-3/8" bolts on 1" centers to allow for direct mounting of 2-hole compression terminals up to 750 kcmil to pipe
• One-wrench installation
• UL467 Listed for the US and Canadian Markets

Type GAR-TC Is A High-Conductivity Copper Ground Connector That Features A Pre-Drilled Pad, Allowing A 2-Hole Compression Terminal To Be Directly Connected To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Large, Smooth Connector Contact Area Between Pipe And Ground Clamp, Provides Large Surface Contact Area To Maximize Contact Area Between Connector And Pipe, The GAR-TC Mounting Pad Permits Parallel, 45 DEG Or 90 DEG Angle Connections To The Pipe, Provides Maximum Flexibility For Field Installation, Pre-Drilled Pad For (2) 3/8 IN Bolts On 1 IN Centers, Allows Direct Mounting Of (2) Hole Compression Terminals Up To 750 KCMIL To Pipe, DURIUM Silicon Bronze Hardware, Provide Long Lasting Corrosion Resistance Acceptable For Direct Burial In Earth Or Concrete, One-Wrench Installation, Simplified Installation, UL467 Listed, Provides Quality Assurance To Recognized Industry NEC Standards From An Independent Party, Type GAR-TC Is Acceptable For Direct Burial, Tube (ips) Size: 1-1/4 - 2 IN, Ground Rod Size: 1.66 - 2.38 IN, Width: 4.75 IN, Height: 4 IN, Installation Torque: 240 IN-LB
