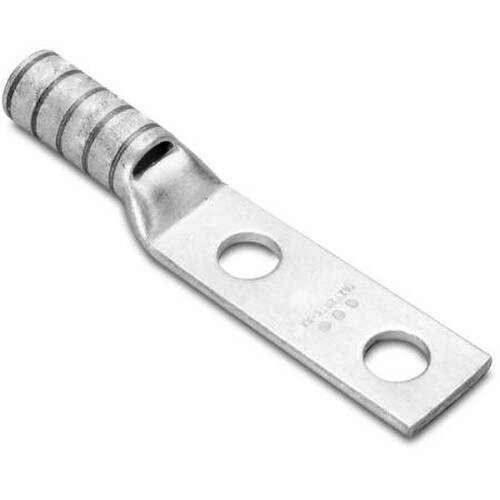

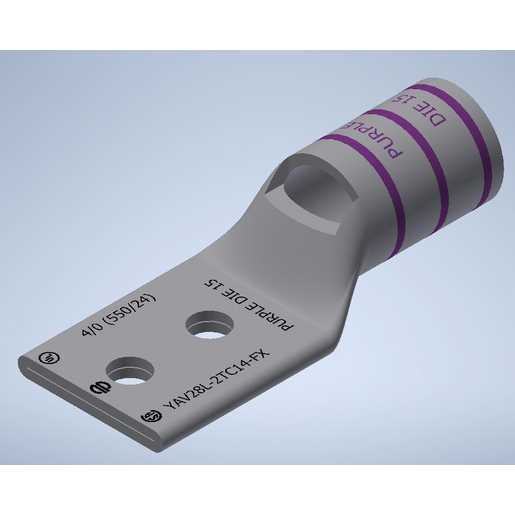

BURNDY 2-Hole Short Lug for 4/0 Wire w/ 1/4 Inch Studs (YAV28L2TC14FX)
- Brand: BURNDY
- P\N: YAV28L2TC14FX
- UPC: 646444583381
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
BURNDY 2-Hole Short Lug for 4/0 Wire w/ 1/4 Inch Studs (YAV28L2TC14FX)
4/0 Flex G,H,I,K,M,DLO, 4/0 AWG CU, Two Hole, 1/4 Stud Size, 5/8 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Purple Color Code, 15 Die Index.
Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 1-1/16 IN, Tongue Angle: Straight, Die Index: 15, Temperature Rating: 90 DEG C, Color Code: Purple, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (1), Y46 Tool, U28RT Die With PUADP-1 Adapter, (1), Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1)
Specifications
General
Application
Catalog Number
Color Code
Connector Type
Die Index
EU RoHS Indicator
Feature - Barrel Style
- Chamfered
- Skived
Feature - Barrel Type
Finish Type
Material
Physical Attribute - Number of Holes
Physical Attribute - Tongue Type
Plated
Plating Type
Sub Brand
Temperature Rating
Trade Name
Type
UPC
UPC 12 Digit
Dimensions
Dimension - B Length fraction
Dimension - B Length inch
Dimension - Bolt Hole Size inch
Dimension - Bolt Size fraction
Dimension - Bolt Size inch
Dimension - D inch
Dimension - Hole Size fraction
Dimension - Hole Size inch
Dimension - Hole Size mm
Dimension - L Length Overall mm
Dimension - Length Overall inch
Dimension - N inch
Dimension - Outside Diameter inch
Dimension - Pad Width inch
Dimension - Strip Length inch
Dimension - Stud Size fraction
Dimension - Thread Size
Dimension - Z (inch)
Physical Attribute - Tongue Angle
Electrical Ratings
Voltage - Maximum
Voltage Rating
Conductor Related
Conductor - Copper DLO Size
Conductor - Copper DLO Size Range
Conductor - Copper Flex G Size
Conductor - Copper Flex G Size Range
Conductor - Copper Flex H Size
Conductor - Copper Flex H Size Range
Conductor - Copper Flex I Size
Conductor - Copper Flex I Size Range
Conductor - Copper Flex K Size
Conductor - Copper Flex K Size Range
Conductor - Copper Flex M Size
Conductor - Copper Flex M Size Range
Conductor - Copper Str Compact Size
Conductor - Copper Str Navy Size
Conductor - Copper Str Navy Size Range
Conductor - Copper Str Size
Conductor - Copper Str Size Range
Conductor - CopperWeld Str Size
Conductor - CopperWeld Str Size Range
Conductor - Material
Conductor Size
Conductor Type
Wire Size
Certifications And Compliance
Certification - CSA Approved
Certification - cULus
Certification - ETL
Certification - UL Recognized
Industry Standard(s)
Standards - RoHS Compliance Status
UL Listed
