C. Crane CCRadio 2E Enhanced Ham Band Radio Black (CC2BE)

  • Brand: C.Crane
  • P\N: CC2BE
  • UPC: 696714300064
5 Reviews

Availability: In Stock


Your Price: $159.99

Do you have questions?

Please contact our experts for assistance.

Description

CCRadio 2E Enhanced AM/FM, NOAA Weather, 2-Meter Ham Band Portable Radio

AM FM Portable Radio Designed for Long-Range Reception and Audio Clarity

The purpose of the CCRadio-2E is to make weak signals strong and also to produce crisp, accurate audio for the spoken word.

AM performance comes from our Twin-Coil Ferrite® AM Antenna and traditional FM reception is exceptional in its ability to bring in a weak station clearly. Audio can be adjusted for accurate, warm voice rendition and good musical performance.

This radio also has the NOAA weather band and alert along with the 2-meter Ham band.

Since the CCRadio's original debut the external design has remained the same but there have been countless revisions inside to improve performance, durability and audio. It is one of the most popular portables manufactured and many experts feel it is the best AM radio made. It has evolved into C. Crane's flagship radio.

Weight: 4 lbs (without optional batteries) Size: 11" W x 6.5" H x 4" D.
Battery Operated (4) D sized batteries or use the included AC power cord.

What's in the box:

  • CCRadio-2E Black Mica
  • AC Power Cord
  • Instruction Manual
  • One Year Limited Warranty
Interested in learning more about this product?Check out our blog!

Features

Features:

  • Exceptional AM reception with the Twin-Coil® Ferrite Antenna
  • Audio tuned for the spoken word
  • AM, FM, NOAA Weather Band with Weather Alert and the 2-Meter Ham Band
  • Clock, alarm, sleep timer, Headphone jack

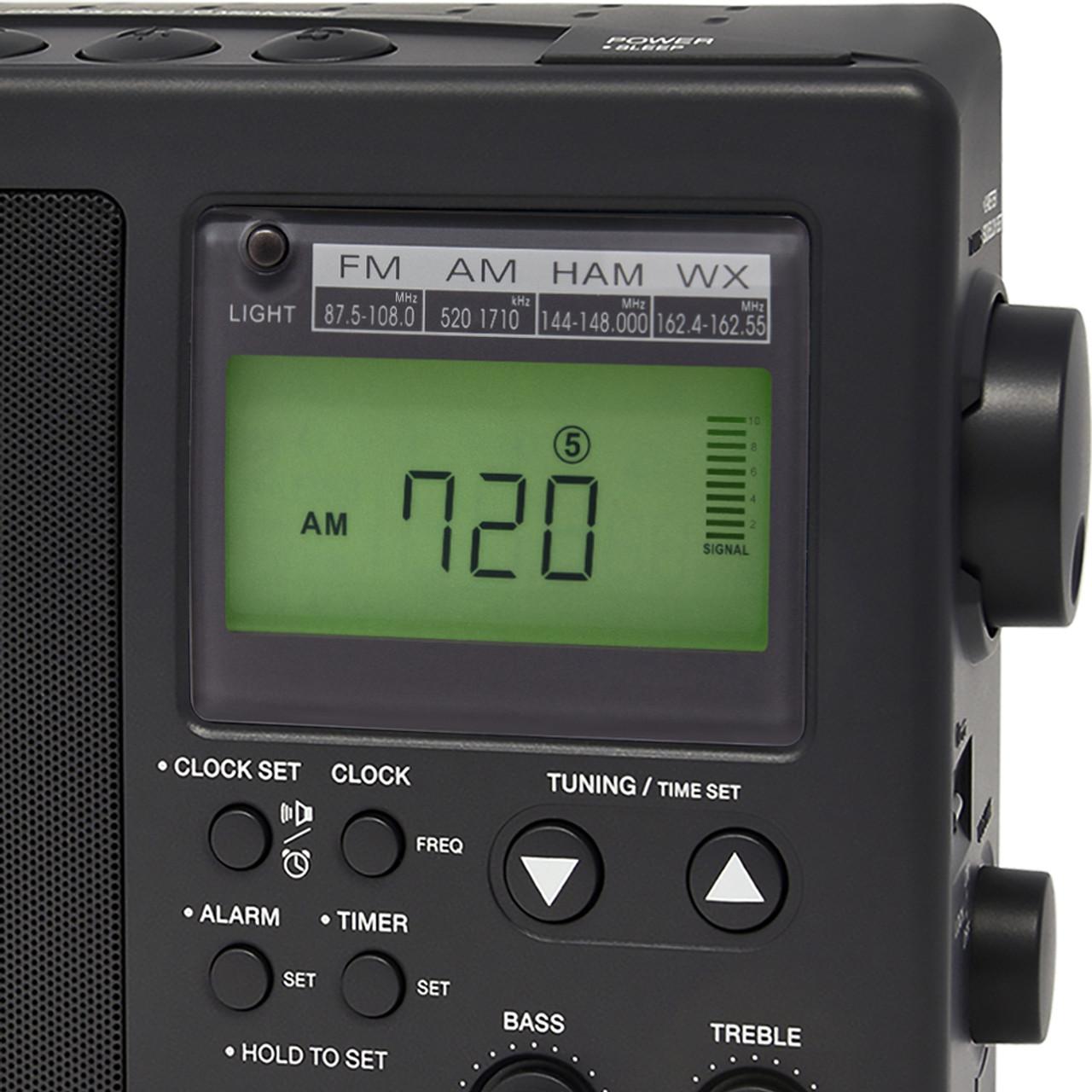

  • Display features a full backlight with three levels of brightness including an off feature

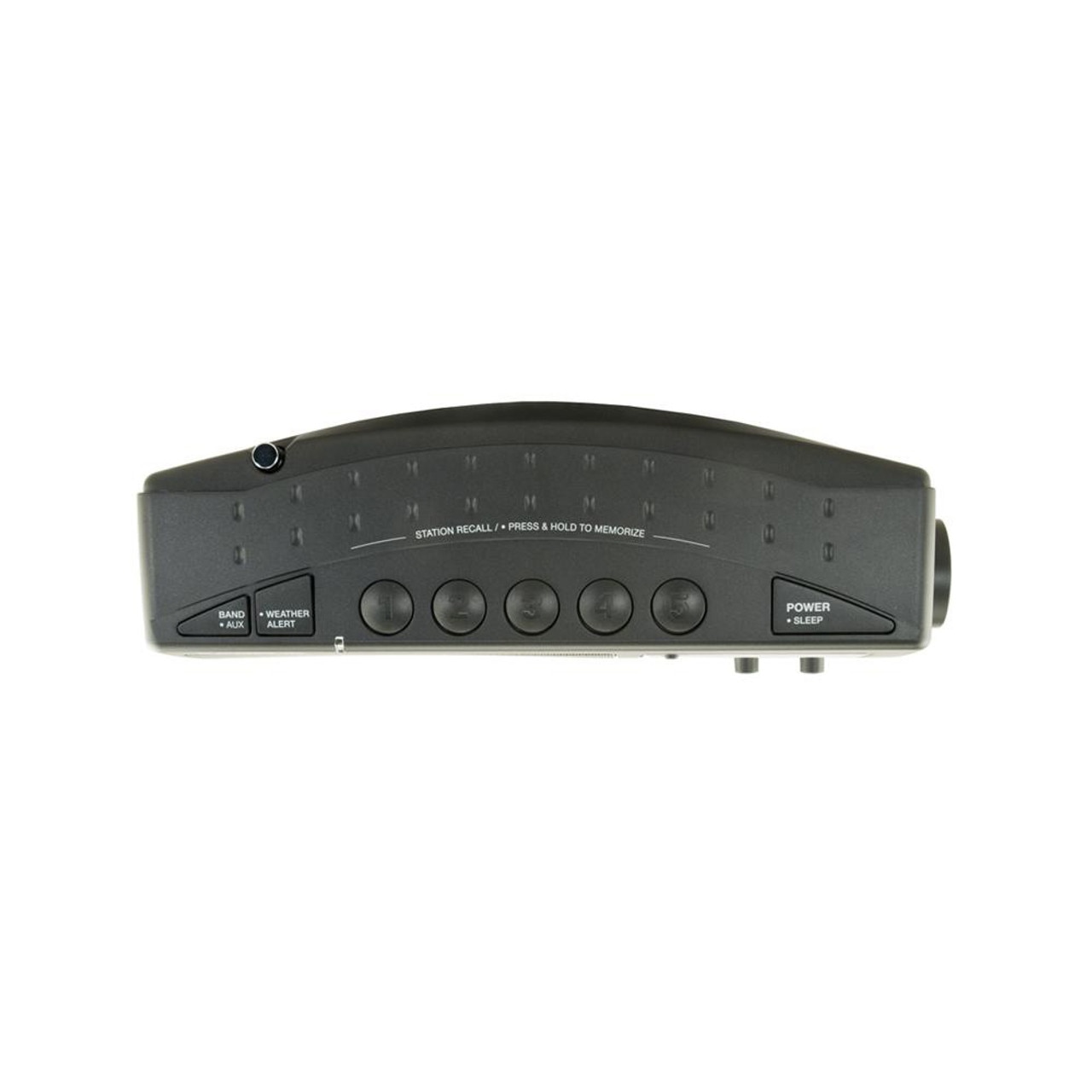

  • 5 one touch memory presets per band
  • Rotary Bass and Treble controls
  • Line-input and line-output jacks
  • External AM Antenna jack
  • Runs approx. 250 hours at a moderate volume level with the display light off.

Specifications

General Specifications
Input Power:Power Cord: AC 120 Volts 60Hz
Batteries: (4) D size (not included)
Power Consumption:AC Power: 8 Watts
Battery Power: 40-50 mA DC
Audio Output:10% THD at output power @ 1.8 Watt AC typical
10% THD at output power @ 0.9 Watt Battery
Speaker:5", 4 Ω, 6 Watts
Frequency Coverage:AM 520 - 1710 kHz
FM 87.5 - 108 MHz
Ham (VHF) 144 - 148 MHz
WX 1-7 CH
Weather Band:Channel 1: 162.400 MHz
Channel 2: 162.425 MHz
Channel 3: 162.450 MHz
Channel 4: 162.475 MHz
Channel 5: 162.500 MHz
Channel 6: 162.525 MHz
Channel 7: 162.550 MHz
Rotary Tuning Knob Resolution:AM - 1 kHz
FM - 50 kHz
Ham (VHF) - 5 kHz
WX - 1 Channel
AM Tuning:10 kHz
FM Tuning:100 kHz
AM Antenna:Internal Ferrite Bar - 12mm x 203mm (8") long with Twin Coil Ferrite® technology
FM, Ham (VHF) and WX Antenna:Telescopic whip antenna - 22.5"
External Antenna
Terminals:
External AM antenna directly wired through filter network into RF front end.
Headphone Jack:⅛" (3.5mm) Stereo
Aux in Jack:⅛" (3.5 mm) stereo, 300 - 1000mV RMS (line level) input from external audio source. Do not overload.
Line Out Jack:⅛" (3.5 mm) stereo, 300 - 1000mV RMS (line output)
Timer Activation Switch:Low impedance, transistor driven switch. Used for operation of external recording devices.
Presets:5 per band
Lock Switch:Yes
Sleep Timer:15-120 minutes
Alarm:Yes
Clock:12-hour system
Dimensions:11" W x 6.5" H x 4" D (at the base)
Weight:Approximately 3.8 pounds without batteries.
Warranty:1 year parts & labor
Included Accessories:Power Cord
Manual
Note: Specifications are subject to change without notice.
AM Specifications
AM-Temp: 25° CR.H.: 75%
Test ItemConditionNominalLimitUnit
InputOutputFreq.
Tuning RangeMin
Max
520
1710
kHz
Intermediate Freq.S/N=6dBMinkHz
Max. SensitivityS/N=6dB600kHz
1000kHz
1400kHz
30
29
29
36
35
35
dBu/m
Usable SensitivityS/N=20dB600kHz
1000kHz
1400kHz
41
40
40
46
45
45
dBu/m
Image RejectionS/N=6dB1400kHz5040dB
I.F. RejectionS/N=6dB600kHz7064dB
Selectivity (±10KHz)S/N=6dB1000Hz6054dB
Bandwith (-6dB)S/N=6dB1000Hz4-9KHz
T. H. D.74dBu/m1000Hz12%
Lowest Batt. Volt.74dBu/m1000Hz3.84.0V
Hum Modulation100dBu/m1000HzdB
Line Out Level74dBu/m1000Hz180±50mV
Auto.Scan. Sens.1000Hz4248dBu/m
Current Consumption80%MOD50mW1000Hz130150mA
Freq. Response(-6dB)74dBu/m1000Hz80
2K
150
1.8K
Hz
Output Power74dBu/m
(80%Mod.)
AC
DC
1000Hz2
0.8
1.8
0.7
W
Overload Capacity80%mod.10%T.H.D.1000Hz120100dBµ/m
A. G. C. F. O. M.100dBu/m1000Hz7064dB
S/N Ratio74dBu/m1000Hz4236dB
Whistle Modulation74dBu/m2IF / 3IF115%
Supply Voltage:
DC 6 v
Adapter 120v 60Hz
Rated Output:
Speaker 50mW
Earphone: 1.25mW
Load:
Spkr 4 Ω
Ear 32 Ω
Line 10 kΩ
Modulation:
1kHz 30% Mod.
Note: Specifications are subject to change without notice.
FM Specifications
FMTemp: 25° CR.H.: 75%
Test ItemConditionNominalLimitUnit
InputOutputFreq.
Tuning RangeS/N=6dBMin
Max
87.5
108
MHz
Intermediate Freq.S/N=6dBMHz
Max. SensitivityS/N=6dB90MHZ
98MHz
106MHz
8
8
8
14
14
14
dBu
Usable SensitivityS/N=30dB90MHZ
98MHz
106MHz
14
14
14
20
20
20
dBu
Image RejectionS/N=6dB106MHz3226dB
I.F. RejectionS/N=6dB90MHz60dB
3dB Limiting (10mV)80dBu98MHz1420dBu
Min. OutputVOL=098MHz0.52mV
Auto Scan Stop Sens.60dBuR.O.98MHz2026dBu
S/N (22.5KHz dev. 1mv)60dBuR.O.98MHz5044dB
Spurious Rejection60dBuR.O.98MHz6055dB
Current Consumption60dBuR.O.98MHz140160mA
Am. Suppression (1mV)60dBuuR.O.98MHz4430dB
Audio Fidelity (-3dB)60dBuR.O.98MHz75
15K
100
12K
Hz
Output Power
(75KHz dev.)
AC
AC
DC
10%T.H.D.98MHz2
5
0.8
1.8
3
0.7
W
mW
W
T. H. D. (75KHz dev.)98MHz12%
Overload Capacity10%T.H.D.98MHz132106dBu
STEREO Indicator Sens.98MHz2228dBu
STEREO SeparationLine Out98MHz2620dB
Line Out Level22.5k
dev
Line Out98MHz180±50mV
Lowest Batt. Volt.60dBuR.O.98MHz3.84.0V
Supply Voltage:
DC 6 v
Adapter 120v 60Hz
ated Output:
Speaker 50mW
Earphone: 1.25mW
Load:
Spkr 4 Ω
Ear 32 Ω
Line 10 kΩ
Modulation:
1kHz/22.5KHz Dev.
De-emphasis: 75uS
Note: Specifications are subject to change without notice.
2-meter VHF Specifications
2-Meter VHFTemp: 25° CR.H.: 75%
Test ItemConditionNominalLimitUnit
InputOutputFreq.
Tuning RangeS/N=6dBMin
Max
144
148
±0.01
±0.01
MHz
Intermediate Freq.-1S/N=6dB10.7±0.01MHz
Intermediate Freq.-2455±0.005kHz
Max. SensitivityS/N=6dB146MHz38dBu
Usable SensitivityS/N=20dB146MHz814dBu
Image RejectionS/N=6dB146MHz3630dB
I.F. Rejection 10.7MHzS/N=6dB146MHz60dB
Min. OutputVol.=Min.146MHz1.53mV
Auto Scan Stop Sens.60dBu146MHz915dBu
S/N (1.5KHz dev. 1mv)60dBu146MHz3630dB
Power Consumption60dBuR. O.146MHz140160mA
Am. Suppression (1mV)60dBu146MHz3226dB
Squelch Range0-BAR *1
1-BAR
Full BAR
146MHz
146MHz
146MHz
-4
0
30
-6
±6
±8
dBu
Audio Fidelity (-6dB)60dBu146MHz80
2K
150
1.8K
Hz
Output Power
(5KHz dev.)
AC
DC
10%T.H.D.146MHz2
0.8
1.8
0.7
W
T. H. D. (5KHz dev.)60dBu146MHz1.53%
Overload Capacity60dBu10%T.H.D.146MHz120106dBu
Line Out Level60dBu146MHz180±50mV
Lowest Batt. Volt.60dBu146MHz3.84.0V
Supply Voltage:
DC 6 v
Adapter 120v 60Hz
Rated Output:
Speaker 50mW
Earphone: 1.25mW
Load:
Spkr 4 Ω
Ear 32 Ω
Line 10 kΩ
Modulation:
1kHz/1.5KHz Dev.
Note: Specifications are subject to change without notice.
WX Specifications
WXTemp: 25° CR.H.: 75%
Test ItemConditionNominalLimitUnit
InputOutputFreq.-
Tuning RangeMin
Max
162.4
162.55
MHz
Intermediate Freq.IFMHz
Max. SensitivityS/N=6dBCH406dBµ
Usable SensitivityS/N=20dBCH4814dBu
Image RejectionCH44030dB
I.F. RejectionCH460dB
Min. OutputCH41.53mV
T. H. D. (5KHz Dev.)CH41.53%
Lowest Batt. Volt.CH43.84.0V
S/N (1.5KHz dev.)1mVCH43226dB
Audio Fidelity(-6dB)CH475
2K
150
1.8K
Hz
Am. Suppression (1mV)1mVCH43024dB
Overload Capacity10%T.H.D.CH4126106dBu
Output Power(5KHz Dev.)ACCH421.8W
Selectivity (±25KHz)CH460dB
Line Out Level1.5KHzCH4180±50mV
Alert Sens.
(3KHz Dev. 5sec.)
MOD. 1050Hz ±0.3%CH406dB
Supply Voltage:
DC 6 v
Adapter 120v 60Hz
Rated Output:
Speaker 50mW
Earphone: 1.25mW
Load:
Spkr 4 Ω
Ear 32 Ω
Line 10 kΩ
Modulation:
1kHz/3KHz Dev.
Note: Specifications are subject to change without notice.

Downloads

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Reviews

5 reviews

Write a Review

Great radio!

by

Excellent AM receiver.

Decent but not great for just regular FM use.

by

I really only use this radio for FM listening and weather alerts. Sound quality is decent. The one major complaint I have is that the antenna is pretty flimsey. I broke mine while trying to put it back in a compact position to change out the batteries. I had to order a new one and it was about $15 for the replacement with shipping. If you get this radio, I'd highly recommend going ahead and getting a replacement antenna at the same time so that you don't have to pay for the extra shipping. I wish I had another spare because I have no doubt it will get broken again. I also don't really like that there is no real handle. There is an area at the top that is indented so you can tuck your fingers in there to carry it, but you can't really grab on to it like you could with a regular handle, especially if you have big hands or long finger nails, making it difficult to just grab and go. I would not buy this one again for what I use it for.

The CCRadio 2E Enhanced is great!

by

The 2E Enhanced is very good on FM, WX with 3 styles of alerts, and 2 Meter shortwave. I can get FM and WX on the built-in whip antenna. I've only found one 2 Meter active frequency with the built-in. For me, no big deal. I bought it to listen to AM, and to DX the AM/MW with the Twin Coil Ferrite AM antenna. It excels as is. It has external AM terminals that I will soon be pairing it to any AM antenna I get. My first external bought antenna will be the Tecsun AN-48X. As is, I have tuned DX on AM 200, 300, 550 miles away. I'm in south-central PA and got Chicago 860 for about 15 min. the other night before I got interference. I also got XEMO 860 Tijuana Mexico for almost 30 min about 535 miles. That's 2,229 miles. Again with the built-in antenna! This 2E Enhanced has good mono sound out of its 5 speaker. Bass and treble adjustments are useful and do make a difference. I did get a great deal on eBay for a new black 2E Enhanced with free (very quick) shipping I couldn't pass it up.

does it work on a plug or battery

by

don't own it need info

Great for long distant AM stations

by

I like this radio. I will start with the weakest feature. The story gets better. The speaker size is too small. Only 1.25 in diameter. Too small for audio, more suitable for a buzzer or smoke alarm. Harsh and shrill therefore. Not usable. Good audio quality through high quality headphones. Good FM stereo through headphones. Best part: Am stations can be heard hundreds of miles away.
