CableTronix 12-Input Passive Headend Combiner With Test Port (CTHC-12G)

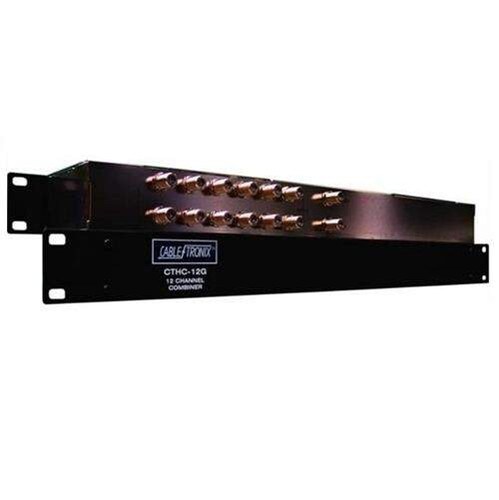

CableTronix CTHC-12G 12-Input Passive Headend Combiner

Best For

Headend installers combining RF outputs from up to 12 modulators or processors into a private cable distribution system.

Why Choose CableTronix CTHC-12G?

This passive combiner brings multiple RF sources to one output and fits a standard 19-inch rack. Its separate test port allows system monitoring without using the main output connection.

Key Benefits

• 12 inputs accommodate multiple headend RF sources.
• 40–1000 MHz operating bandwidth supports the specified RF distribution range.
• A -20 dB test port provides a monitoring connection.
• 19-inch rack mounting integrates with headend equipment.

Who Should Buy CTHC-12G?

Choose this model for a 75-ohm headend that requires passive combining. Account for its insertion loss when designing system levels; it combines signals rather than providing amplification.

Technical Specifications

• Inputs: 12; connectors: F type; impedance: 75 ohms.
• Frequency range: 40–1000 MHz.
• Typical insertion loss: 19 dB at 40–450 MHz; 21 dB at 450–1000 MHz.
• Typical input and output return loss: 16 dB.
• Typical isolation: 30 dB between adjacent ports; 40 dB between opposing ports.
• Test port: -20 dB.
• Dimensions: 19 inches wide x 1.75 inches high x 3 inches deep.
• Weight: 2 lb. 4 oz.
• Operating temperature: 32°F to 122°F.

Installation and Included Items

The package contains one CTHC-12G combiner and an instruction manual. Use 75-ohm coaxial connections, set input and output levels according to the headend design, and terminate the test port when it is not in use. Follow the manufacturer manual for grounding and installation.
