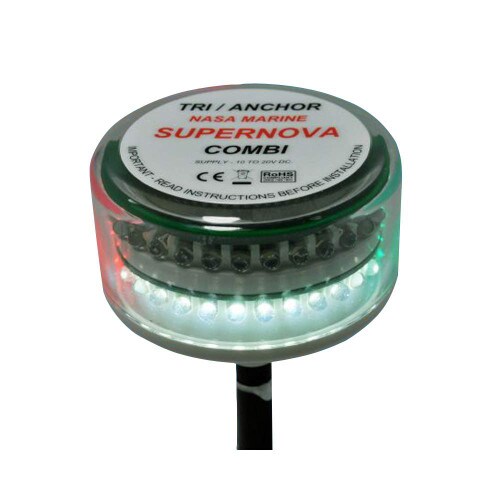

Clipper Supernova Combi LED Tricolor Masthead Anchor Light (CL-CTC)

Clipper Supernova Combi LED Tricolor Masthead Anchor Light (CL-CTC)

Key Features and Benefits

Experience the power of high-efficiency LEDs with the Clipper Supernova Combi LED Tricolor Masthead Anchor Light. This robust light is designed to provide long-lasting illumination with minimal power consumption, making it an ideal choice for vessels up to 12 meters in length.

• Supply voltage: 10 to 20 volts for full brightness
• Supply current: 200 mA @ 12 volts, typically 90% less than equivalent incandescent lamps
• Night time visibility: 2 nautical miles minimum, 25 degrees above and below the centerline
• Waterproofness: IP65 (Water jets), IP67 (Submersion)
• Dimensions: 91 mm diameter x 133 mm Height (including mounting)
• Configuration: Anchor light version - 360 degrees white; Tri-colour version - 112.5 degrees Red, 112.5 degrees green, 135 degrees white

Technical Specifications

The Clipper Supernova Combi LED Tricolor Masthead Anchor Light is encased in a tough polycarbonate shell, protecting it from harsh weather conditions. It features a Gore-Tex membrane vent for pressure equalization on the seals. The light is powered by a simple two-wire connection, with a rotary switch supplied to facilitate supply reversal. The light complies with CE generic EMC standards and is waterproof to IP65 and IP67.

Easy Installation and Use

Installing the Clipper Supernova Combi LED Tricolor Masthead Anchor Light is a breeze. Connect the red wire to positive and the black wire to negative to illuminate the tricolor light. Reverse the connections to illuminate the anchor light. The light comes with a rotary switch for easy supply reversal. In the central position, both lights are off. Switching clockwise or anticlockwise selects the required lighting configuration. If you prefer a toggle or rocker switch to match existing switches, a centre-off two pole changeover switch can be used.

Experience the difference of the Clipper Supernova Combi LED Tricolor Masthead Anchor Light. Its high-efficiency LEDs, robust construction, and easy installation make it a must-have for any vessel. Don't wait, upgrade your lighting system today!
