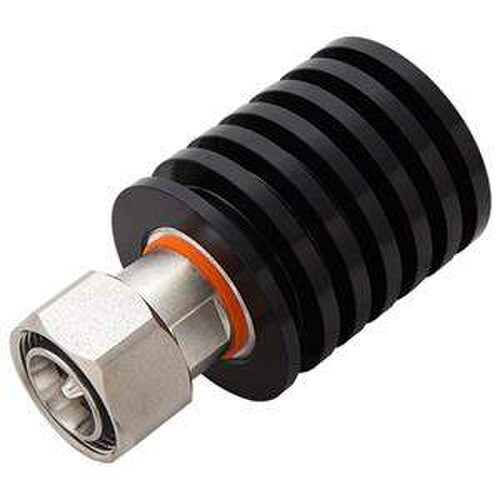

CommScope 0-6000 MHz Termination Load 10 W 4.3-10M (T-10-UW-43-M)

  • Brand: CommScope
  • P\N: T-10-UW-43-M
  • UPC: 646444606967
(0)No Reviews yet

Availability: In Stock


Your Price: $136.00

Do you have questions?

Please contact our experts for assistance.

Description

Description

Introducing the CommScope 0-6000 MHz Termination Load 10 W 4.3-10M (T-10-UW-43-M)

Key Features and Benefits

  • Wide operating frequency range of 0-6000 MHz
  • High-quality 4.3-10 male interface
  • Compact and lightweight design
  • Indoor and outdoor application
  • Compliant with international standards

Experience the ultimate in termination load performance with the CommScope T-10-UW-43-M. Designed for both indoor and outdoor applications, this versatile device offers a wide operating frequency range of 0-6000 MHz, ensuring compatibility with a variety of systems. Its compact and lightweight design makes it easy to install and transport, while the high-quality 4.3-10 male interface ensures reliable connections.

Technical Specifications

The CommScope T-10-UW-43-M boasts impressive technical specifications, including a maximum average power of 10 W, 50 ohm impedance, and a low VSWR of 1.15. Its operating temperature ranges from -35 °C to +50 °C (-31 °F to +122 °F), and it can withstand relative humidity levels of up to 100%. Additionally, the device has been tested for ingress protection according to IEC 60529:2001, achieving an IP65 rating.

Dimensions and Weights

Measuring just 53 mm (2.087 in) in length and 35 mm (1.378 in) in diameter, the CommScope T-10-UW-43-M is compact and easy to install. Its net weight is a mere 0.13 kg (0.287 lb), making it a lightweight addition to your system.

Regulatory Compliance and Certifications

Rest assured that the CommScope T-10-UW-43-M is compliant with international standards, including ISO 9001:2015, ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS. This means you can trust the quality and safety of this termination load for your applications.

Don't settle for less when it comes to termination load performance. Choose the CommScope T-10-UW-43-M for reliable, high-quality connections and a wide operating frequency range. Upgrade your system today and experience the difference!
