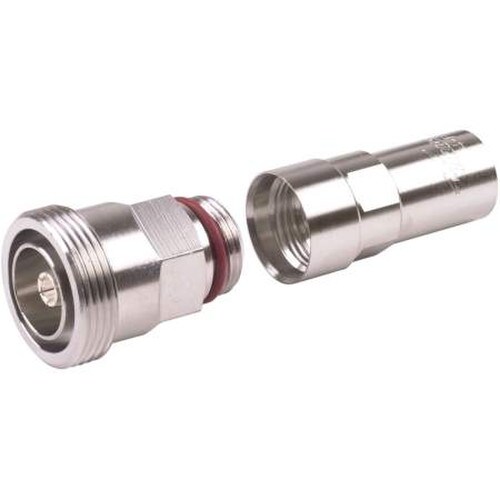

CommScope 1/2" DIN Female Positive Stop LDF4 HL4RP AL4RPV (L4TDF-PSA)

Introducing the CommScope 1/2" DIN Female Positive Stop Connector (L4TDF-PSA)

Upgrade your wireless and radiating systems with the high-quality CommScope 1/2" DIN Female Positive Stop LDF4 HL4RP AL4RPV (L4TDF-PSA) connector. Designed for professionals seeking reliable and efficient connections, this HELIAX® | Positive Stop™ connector ensures optimal performance and durability in various environments.

Key Features and Benefits

• Compatible with AL4-50, LDF4-50A, and HL4RPV-50 cables
• High shielding effectiveness of -110 dB
• Wide operating frequency band of 0 – 8800 MHz
• Low insertion loss coefficient of 0.05
• High corrosion resistance and durability
• Compliant with ISO 9001:2015, ROHS and UK-ROHS standards

Technical Specifications

With a straight body style and silver-plated inner contact, the L4TDF-PSA connector offers a 50-ohm impedance for both cable and connector. The connector has a maximum dc test voltage of 4000 V and a maximum peak power of 40 kW. Its mechanical specifications include an attachment durability of 25 cycles and a connector retention tensile force of 889.64 N (200.000 lbf).

Environmental Adaptability

The L4TDF-PSA connector is designed to withstand harsh environmental conditions, with an operating temperature range of -55 °C to +85 °C (-67 °F to +185 °F) and a storage temperature range of -55 °C to +85 °C (-67 °F to +185 °F). It has passed various tests for corrosion, moisture resistance, thermal shock, vibration, and water jetting, ensuring its durability and reliability in various environments.

Regulatory Compliance and Certifications

This CommScope connector is designed, manufactured, and/or distributed under the ISO 9001:2015 quality management system. It is also compliant with ROHS and UK-ROHS standards, ensuring its safety and environmental friendliness.

Experience the difference in performance and reliability with the CommScope 1/2" DIN Female Positive Stop LDF4 HL4RP AL4RPV (L4TDF-PSA) connector. Don't compromise on quality – upgrade your wireless and radiating systems with this top-of-the-line connector today!
