  • CommScope 1/2in Foam Heliax Foam Dielectric Coax Cable (LDF4-50A)

CommScope 1/2in Foam Heliax Foam Dielectric Coax Cable (LDF4-50A)

  • Brand: CommScope
  • P\N: LDF4-50A
  • UPC: 646444291507
(0)No Reviews yet

Availability: In Stock


Your Price: $3.99

Do you have questions?

Please contact our experts for assistance.

Description

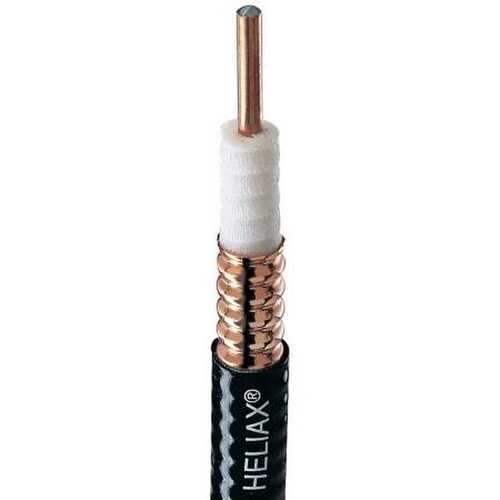

CommScope 1/2in Foam Heliax Foam Dielectric Coax Cable

Experience superior signal transmission with the CommScope 1/2in Foam Heliax Foam Dielectric Coax Cable. This high-quality cable is designed to deliver exceptional performance and reliability, making it an ideal choice for both indoor and outdoor applications.

Key Features:

  • 5-inch bending radius that prevents kinking, ensuring uninterrupted signal transmission
  • Annular corrugated copper outer conductor for enhanced signal strength
  • Copper-clad aluminum center conductor for optimal signal clarity
  • 8.8 GHz frequency capacity, allowing for high-speed data transfer

Experience the difference that quality makes with the CommScope 1/2in Foam Heliax Foam Dielectric Coax Cable. Don't compromise on your data transmission needs. Order now and enjoy superior performance and reliability.

Specifications

Product Classification

Product TypeCoaxial wireless cable
Product BrandHELIAX®
Product SeriesLDF4-50A
Ordering NoteCommScope® standard product (Global)

General Specifications

Product Number520094002/00 | SZ520094902/00
FlexibilityStandard
Jacket ColorBlack
Performance NoteAttenuation values typical, guaranteed within 5%

Dimensions

Diameter Over Dielectric12.954 mm | 0.51 in
Diameter Over Jacket15.875 mm | 0.625 in
Inner Conductor OD4.826 mm | 0.19 in
Outer Conductor OD13.97 mm | 0.55 in
Nominal Size1/2 in

Electrical Specifications

Cable Impedance50 ohm ±1 ohm
Capacitance75.8 pF/m | 23.104 pF/ft
dc Resistance, Inner Conductor1.48 ohms/km | 0.451 ohms/kft
dc Resistance, Outer Conductor2.69 ohms/km | 0.820 ohms/kft
dc Test Voltage4000 V
Inductance0.19 µH/m | 0.058 µH/ft
Insulation Resistance100000 MOhms-km
Jacket Spark Test Voltage (rms)8000 V
Operating Frequency Band1 – 8800 MHz
Peak Power40 kW
Velocity88 %

Attenuation

FrequencyAttenuation (dB/100 m)Attenuation (dB/100 ft)Average Power (kW)
1.0 MHz0.2110.06436.11
1.5 MHz0.2590.07929.46
2.0 MHz0.2990.09125.50
10.0 MHz0.6720.20511.35
20.0 MHz0.9540.2917.99
30.0 MHz1.1720.3576.51
50.0 MHz1.5210.4635.02
85.0 MHz1.9950.6083.82
88.0 MHz2.0310.6193.76
100.0 MHz2.1690.6613.52
108.0 MHz2.2560.6883.38
150.0 MHz2.6730.8152.85
174.0 MHz2.8870.8802.64
200.0 MHz3.1030.9462.46
204.0 MHz3.1350.9562.43
300.0 MHz3.8351.1691.99
400.0 MHz4.4621.3601.71
450.0 MHz4.7491.4471.61
460.0 MHz4.8041.4641.59
500.0 MHz5.0211.5301.52
512.0 MHz5.0851.5501.50
600.0 MHz5.5331.6861.38
700.0 MHz6.0091.8311.27
800.0 MHz6.4561.9681.18
824.0 MHz6.5601.9991.16
894.0 MHz6.8552.0891.11
960.0 MHz7.1242.1711.07
1000.0 MHz7.2842.2201.05
1218.0 MHz8.1102.4720.94
1250.0 MHz8.2262.5070.93
1500.0 MHz9.0932.7710.84
1700.0 MHz9.7442.9700.78
1794.0 MHz10.0393.0600.76
1800.0 MHz10.0583.0660.76
2000.0 MHz10.6663.2510.72
2100.0 MHz10.9613.3410.70
2200.0 MHz11.2513.4290.68
2300.0 MHz11.5353.5160.66
2500.0 MHz12.0903.6850.63
2700.0 MHz12.6273.8490.60
3000.0 MHz13.4074.0860.57
3400.0 MHz14.4014.3890.53
3600.0 MHz14.8824.5360.51
3700.0 MHz15.1184.6080.50
3800.0 MHz15.3534.6790.50
3900.0 MHz15.5854.7500.49
4000.0 MHz15.8154.8200.48
4100.0 MHz16.0424.8890.48
4200.0 MHz16.2684.9580.47
4300.0 MHz16.4925.0270.46
4400.0 MHz16.7145.0940.46
4500.0 MHz16.9345.1610.45
4600.0 MHz17.1535.2280.44
4700.0 MHz17.3705.2940.44
4800.0 MHz17.5855.3600.43
4900.0 MHz17.7985.4250.43
5000.0 MHz18.0105.4890.42
6000.0 MHz20.0556.1130.38
8000.0 MHz23.8267.2620.32
8800.0 MHz25.2447.6940.30

Return Loss/VSWR

Frequency BandVSWRReturn Loss (dB)
680–800 MHz1.13024.30
800–960 MHz1.13024.30
1700–2200 MHz1.13024.30
2300–2700 MHz1.13024.30

Material Specifications

Dielectric MaterialFoam PE
Jacket MaterialPE
Inner Conductor MaterialCopper-clad aluminum wire
Outer Conductor MaterialCorrugated copper

Mechanical Specifications

Minimum Bend Radius, multiple Bends127 mm | 5 in
Minimum Bend Radius, Single Bend50.8 mm | 2 in
Number of Bends, minimum15
Number of Bends, typical50
Tensile Strength113 kg | 249.122 lb
Bending Moment3.8 N-m | 33.633 in lb
Flat Plate Crush Strength2 kg/mm | 111.995 lb/in

Environmental Specifications

Installation temperature-40 °C to +60 °C (-40 °F to +140 °F)
Operating Temperature-55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature-70 °C to +85 °C (-94 °F to +185 °F)
Attenuation, Ambient Temperature20 °C | 68 °F
Average Power, Ambient Temperature40 °C | 104 °F
Average Power, Inner Conductor Temperature100 °C | 212 °F

Packaging and Weights

Cable weight0.22 kg/m | 0.148 lb/ft

Regulatory Compliance/Certifications

AgencyClassification
CENELECEN 50575 compliant, Declaration of Performance (DoP) available
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHSCompliant
CHINA-ROHSBelow maximum concentration value
REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHSCompliant
