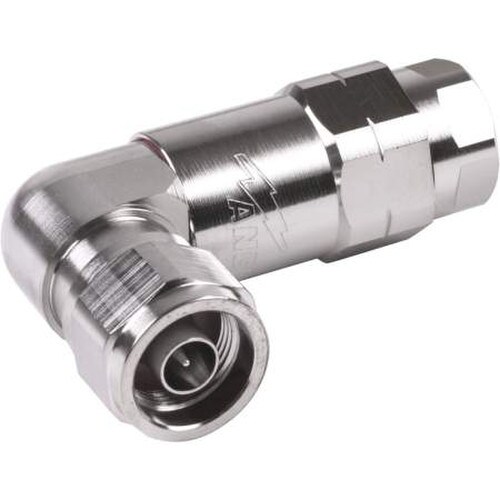

CommScope 1/2in Superflex N-Male Right Angle (F4NR-HC)

Introducing the CommScope 1/2in Superflex N-Male Right Angle (F4NR-HC)

Upgrade your wireless and radiating connector system with the CommScope 1/2in Superflex N-Male Right Angle (F4NR-HC). Designed for professionals who demand high-quality and reliable connections, this connector is part of the HELIAX® product series and is compatible with FSJ4-50B and FSJ4RK-50B cables. Experience improved performance and durability with this state-of-the-art connector.

Key Features and Benefits

• Right angle design for easy installation and cable management
• Gold and silver plated inner contacts for optimal signal transmission
• Trimetal outer contact plating for enhanced durability
• Self-flare outer contact attachment method for secure connections
• Wide operating frequency band (0 – 10200 MHz) for versatile use
• High shielding effectiveness (-110 dB) for reduced interference
• Environmentally friendly with ROHS and CHINA-ROHS compliance

Technical Specifications

The CommScope 1/2in Superflex N-Male Right Angle (F4NR-HC) boasts impressive technical specifications, including:

• 3rd Order IMD at Frequency: -116 dBm @ 910 MHz
• Insertion Loss Coefficient, typical: 0.05
• Average Power at Frequency: 0.6 kW @ 900 MHz
• Cable Impedance: 50 ohm
• Connector Impedance: 50 ohm
• dc Test Voltage: 2000 V
• Inner Contact Resistance, maximum: 2 mOhm
• Insulation Resistance, minimum: 5000 mOhm
• Outer Contact Resistance, maximum: 0.3 mOhm
• Peak Power, maximum: 10 kW
• RF Operating Voltage, maximum (vrms): 707 V

With its robust construction and advanced features, the CommScope 1/2in Superflex N-Male Right Angle (F4NR-HC) is the ideal choice for professionals seeking a reliable and high-performance connector solution.

Upgrade Your Connector System Today

Don't settle for subpar connections. Enhance your wireless and radiating connector system with the CommScope 1/2in Superflex N-Male Right Angle (F4NR-HC) and experience the difference in performance and reliability. Order now and take advantage of this cutting-edge connector technology.
