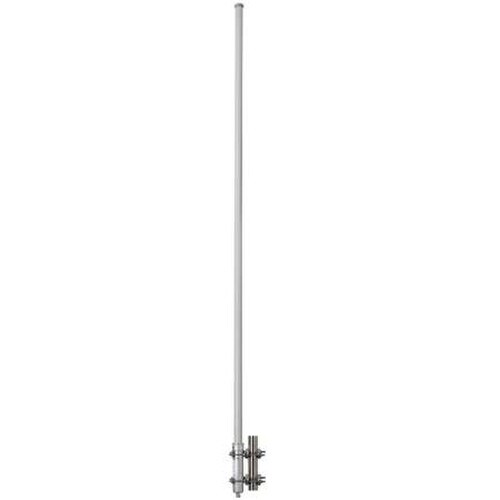

CommScope 1-Port Omni Antenna 694-896 MHz 360deg HPBW (UNA010F-0-V2)
- Brand: CommScope
- P\N: UNA010F-0-V2
- UPC: 646444982429
Do you have questions?
Please contact our experts for assistance.
Description
Description
CommScope 1-Port Omni Antenna (UNA010F-0-V2): Enhance Your Wireless Connectivity
Key Features and Benefits
- Wide operating frequency band (694-896 MHz) for versatile use
- 360-degree horizontal beamwidth for extensive coverage
- High gain (11.1 dBi) for improved signal strength
- Robust, UV-resistant fiberglass radome for outdoor usage
- Easy installation with bottom RF connector location
Experience seamless wireless connectivity with the CommScope 1-Port Omni Antenna. Designed for outdoor use, this high-performance antenna offers a wide operating frequency band and 360-degree horizontal beamwidth, ensuring extensive coverage and reliable signal strength. With its robust, UV-resistant fiberglass radome, the antenna is built to withstand harsh weather conditions, making it an ideal choice for various applications.
Technical Specifications
- Antenna Type: Omni, Single band
- Color: Light gray
- Dimensions: Length - 3414 mm (134.41 in), Outer Diameter - 56 mm (2.205 in)
- Net Weight: 9.1 kg (20.062 lb)
- RF Connector Interface: 7-16 DIN Female
- Electrical Specifications: Impedance - 50 ohm, Polarization - Vertical, Gain - 11.1 dBi, Beamwidth (Horizontal) - 360 degrees, Beamwidth (Vertical) - 7.2 degrees
- Maximum Input Power: 100 W @ 50 °C
The CommScope 1-Port Omni Antenna is designed with a 7-16 DIN Female RF connector interface, located at the bottom for easy installation. Its electrical specifications include a 50-ohm impedance, vertical polarization, and a maximum input power of 100 W at 50 °C. With a gain of 11.1 dBi and vertical beamwidth of 7.2 degrees, this antenna ensures optimal performance and reliable connectivity.
Regulatory Compliance and Certifications
The CommScope 1-Port Omni Antenna is designed, manufactured, and distributed under the ISO 9001:2015 quality management system, ensuring the highest standards of quality and performance.
Upgrade your wireless connectivity with the CommScope 1-Port Omni Antenna (UNA010F-0-V2) today and experience the difference in performance and reliability. Don't wait – order now and enjoy seamless communication and data transfer.
