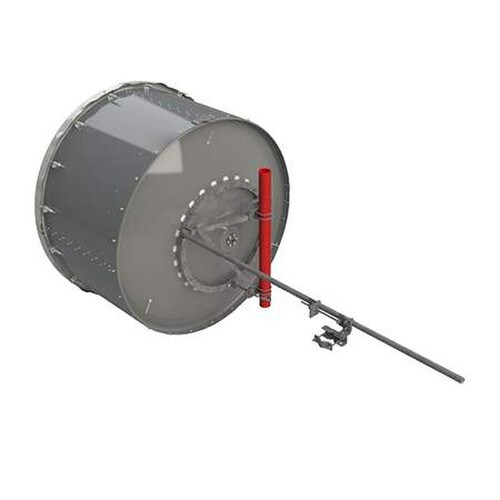

CommScope 10.00-11.70 GHz 8ft Sentinel Ultra HP XPD Antenna (USX8-11W-6GF)

CommScope 10.00-11.70 GHz 8ft Sentinel Ultra HP XPD Antenna (USX8-11W-6GF)

Key Features and Benefits

• Ultra High Performance, Super High XPD Antenna for superior signal quality
• Dual-polarized design for increased capacity and reliability
• One-piece reflector construction for easy installation and maintenance
• High gain and low VSWR for optimal performance
• Compliant with multiple regulatory standards for global use

Enhance Your Network with CommScope's Sentinel Antenna

Upgrade your network with the CommScope 8ft Sentinel Ultra HP XPD Antenna, designed to provide superior signal quality and reliability. This high-performance microwave antenna is perfect for professionals seeking to enhance their network's capacity and performance. With its dual-polarized design, the antenna offers increased capacity and reliability, ensuring your network stays connected even in challenging conditions.

Superior Performance and Easy Installation

The Sentinel Ultra HP XPD Antenna features a one-piece reflector construction, making it easy to install and maintain. Its high gain and low VSWR ensure optimal performance, while the included flash and side struts provide additional stability. The antenna is also compliant with multiple regulatory standards, including ACMA, ETSI, and US FCC, making it suitable for global use.

Technical Specifications

• Operating Frequency Band: 10.000 – 11.700 GHz
• Gain: 45.4 - 46.6 dBi
• Boresite Cross Polarization Discrimination (XPD): 40 dB
• Front-to-Back Ratio: 80 dB
• Beamwidth, Horizontal and Vertical: 0.9 °
• Return Loss: 26 dB
• VSWR: 1.1
• Compatible Mounting Pipe Diameter: 115 mm | 4.5 in
• Wind Speed, operational: 180 km/h | 111.847 mph
• Wind Speed, survival: 200 km/h | 124.274 mph

Experience the difference in network performance with the CommScope 8ft Sentinel Ultra HP XPD Antenna. Its superior design and advanced features make it the perfect choice for professionals seeking to enhance their network's capacity and reliability. Don't settle for less – upgrade your network with the CommScope Sentinel Antenna today.

Order your CommScope 8ft Sentinel Ultra HP XPD Antenna now and experience the difference in network performance!
