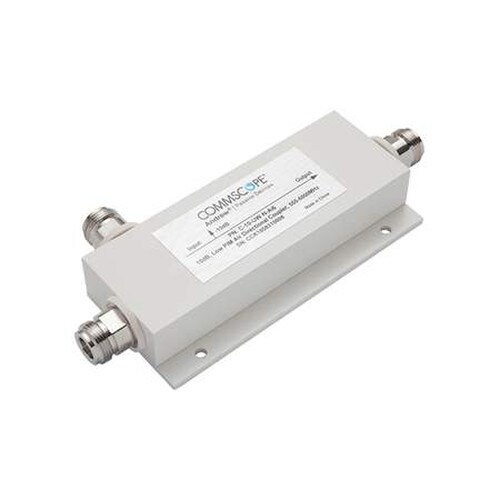

CommScope 10 dB Air Directional Coupler 555-6000 MHz (C-10-UW-N-AI6)

CommScope 10 dB Air Directional Coupler (C-10-UW-N-AI6)

Key Features and Benefits

• Wide operating frequency range of 555-6000 MHz
• High isolation and low insertion loss
• Compact and lightweight design
• Indoor and outdoor application
• Compliant with international standards and certifications

Experience enhanced signal distribution and improved network performance with the CommScope 10 dB Air Directional Coupler. Designed for both indoor and outdoor applications, this high-quality coupler offers a wide operating frequency range of 555-6000 MHz, ensuring compatibility with various communication systems. Its compact and lightweight design allows for easy installation and integration into your existing network infrastructure.

Technical Specifications

• Device Type: Coupler
• Application: Indoor/Outdoor
• Color: White
• Inner Contact Plating: Silver
• Interface: N Female
• Outer Contact Plating: Trimetal
• Dimensions: 159 x 72 x 22 mm (6.26 x 2.835 x 0.866 in)
• Weight: 0.38 kg (0.838 lb)
• Operating Temperature: -35 °C to +85 °C (-31 °F to +185 °F)
• Relative Humidity: Up to 100%
• Corrosion Test Method: IEC 60068-2-11, 30 days
• Ingress Protection Test Method: IEC 60529:2001, IP67

With high isolation and low insertion loss, the CommScope 10 dB Air Directional Coupler ensures efficient signal distribution and minimal interference. Its robust construction and corrosion-resistant materials guarantee long-lasting performance, even in harsh environmental conditions. Furthermore, this coupler is compliant with international standards and certifications, including ISO 9001:2015, ensuring quality and reliability.

User Instructions

• Ensure compatibility with your communication system's frequency range
• Install the coupler according to the manufacturer's guidelines
• Connect the coupler to the appropriate cables and devices
• Verify proper signal distribution and network performance

Upgrade your network infrastructure with the CommScope 10 dB Air Directional Coupler and experience improved signal distribution and enhanced performance. Don't miss out on this reliable and efficient solution – order now!
