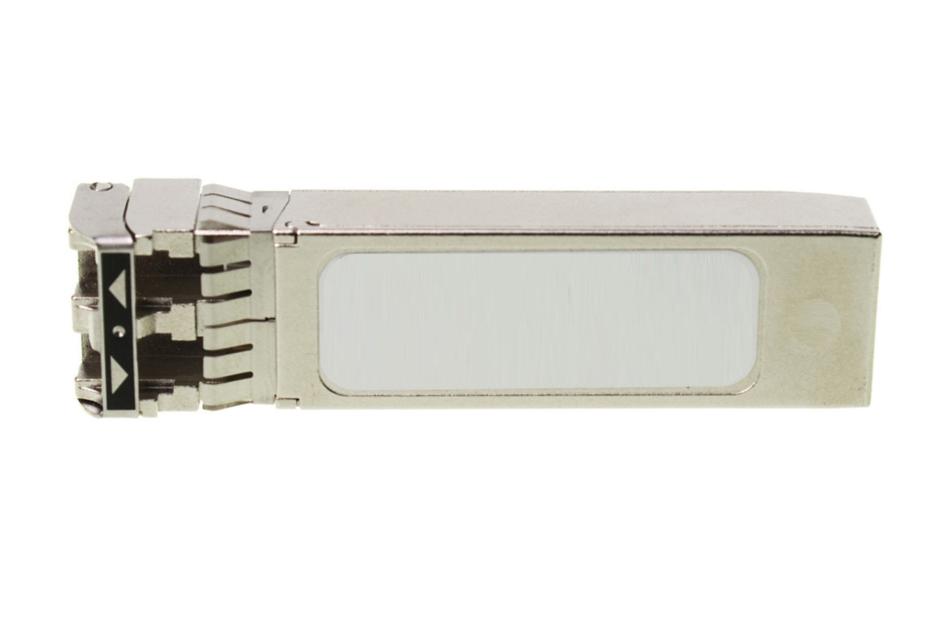

CommScope 10GBASE-LR Single-Mode SFP Tranceiver for ION-E (7680813)
- Brand: CommScope
- P\N: 7680813
- UPC: 729198952822
Live Chat
Contact Us
Description
CommScope's Single-mode SFP 10GBASE-LR Transceiver for use with ION-E optical card.
Specifications
Product Classification
| Product Type | Optical module |
| Product Series | SFP+ |
General Specifications
| Interface | LC/UPC |
| Note | Detailed Product Specifications are available. Please contact your local CommScope representative. |
Dimensions
| Height | 13 millimeter | 0.512 inch |
| Width | 13.9 millimeter | 0.547 inch |
| Depth | 56.4 millimeter | 2.22 inch |
Optical Specifications
| Fiber Type | 9/125 µm, singlemode |
| Average Optical Output Power, maximum | 0.5 dBm |
| Average Optical Output Power, minimum | -8.2 dBm |
| Rx/Tx Power Accuracy | ±3dB / ±3dB |
| Operating Wavelength | 1260 – 1360 nm | 1260 – 1610 nm (Rx) |
| Receiver Sensitivity, maximum | –14.4 dBm |
| Receiver Overload | + 0.5 dBm |
Environmental Specifications
| Operating Temperature | 0 °C to +70 °C (+32 °F to +158 °F) |
Packaging and Weights
| Height, packed | 20 millimeter| 0.787 inch |
| Width, packed | 105 millimeter| 4.134 inch |
| Depth, packed | 65 millimeter| 2.559 inch |
| Packaging quantity | 1 |
| Packaging Type | Box |
| Weight, gross | 0.036 kg | 0.079 lbs. |
| Weight, net | 0.022 kg | 0.049 lbs. |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ROHS | Compliant/Exempted |
CHINA-ROHS | Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
