CommScope 12ft Non-Penetrating Roof Frame for 2-3/8in pipes (RF-NL12-B)

CommScope 12ft Non-Penetrating Roof Frame for 2-3/8in Pipes (RF-NL12-B)

Key Features and Benefits

• Non-penetrating mounting solution for easy installation
• Supports up to four 96 in x 18 in panel antennas per sector
• Constructed with hot dip galvanized steel for durability and strength
• Compliant with ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS regulations
• Wind rating tested according to TIA/EIA-222 standards

Overview

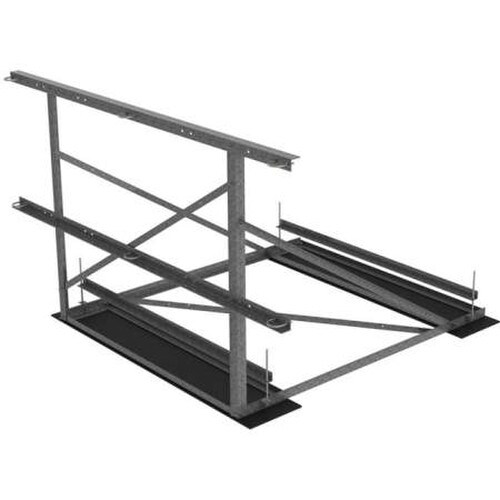

The CommScope RF-NL12-B is a 12ft non-penetrating roof frame designed to provide a secure and stable mounting solution for 2-3/8in pipes. This versatile and easy-to-install frame is perfect for supporting panel antennas and other equipment on rooftops without causing damage or requiring extensive modifications. With its robust construction and compliance with various regulatory standards, the RF-NL12-B is an ideal choice for professionals looking for a reliable and efficient mounting solution.

Technical Specifications

• Mounting: Non-penetrating
• Dimensions: Height - 1910.08 mm (75.2 in), Face Width - 3.81 m (12.5 ft), Width - 3200.4 mm (126 in), Length - 2.621 m (8.6 ft)
• Pipe Outer Diameter: 88.9 mm (3.5 in)
• Material Type: Hot dip galvanized steel
• Wind Rating: For Specifications, please contact steelproducts@commscope.com or call 800-255-1479
• Wind Rating Test Method: TIA/EIA-222
• Included: Rubber mats, with or without pipe mounts
• Packaging quantity: 1
• Weight, net: 263.5 kg (580.917 lb)

Easy Installation and Maintenance

The non-penetrating design of the RF-NL12-B allows for quick and hassle-free installation, saving you time and effort. The frame comes with rubber mats to protect the roof surface and can be used with or without pipe mounts, depending on your specific requirements. Additionally, the hot dip galvanized steel construction ensures long-lasting durability and resistance to corrosion, making it a low-maintenance solution for your mounting needs.

Compliant with Regulatory Standards

The CommScope RF-NL12-B is compliant with various regulatory standards, including ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS. This ensures that the product is safe and environmentally friendly, giving you peace of mind when using it for your projects.

Don't compromise on quality and reliability when it comes to your mounting solutions. Invest in the CommScope RF-NL12-B non-penetrating roof frame and experience the benefits of a secure, stable, and easy-to-install mounting system. Order yours today!
