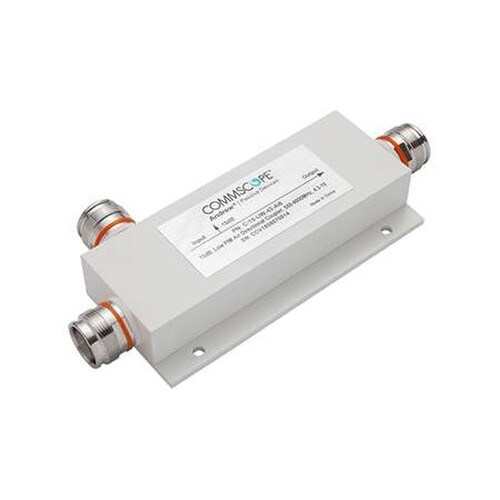

CommScope 15 dB Air Directional Coupler 555-6000 MHz (C-15-UW-43-AI6)

Introducing the CommScope 15 dB Air Directional Coupler (C-15-UW-43-AI6)

Experience unparalleled signal performance with the CommScope 15 dB Air Directional Coupler (C-15-UW-43-AI6). Designed for both indoor and outdoor applications, this high-quality coupler ensures reliable and efficient signal transmission across a wide frequency range of 555-6000 MHz. With its sleek white design and durable construction, the C-15-UW-43-AI6 is the perfect addition to your professional antenna setup.

Key Features and Benefits

• Wide operating frequency band (555-6000 MHz) for versatile use
• 15 dB coupling with ±1.3dB tolerance for accurate signal transmission
• Low insertion loss (0.5 dB) for minimal signal degradation
• High isolation levels for reduced interference
• Compact and lightweight design for easy installation
• Weather-resistant construction for reliable outdoor performance
• Compliant with international quality and safety standards

Technical Specifications

The C-15-UW-43-AI6 boasts impressive technical specifications, including a maximum average power of 300 W, peak power of 1 kW, and reflected power of 200 W. With a 50 ohm impedance and VSWR levels as low as 1.2:1, this directional coupler ensures optimal signal performance in various environments. The device also features silver inner contact plating and trimetal outer contact plating for enhanced durability and corrosion resistance.

User Instructions

Installing the C-15-UW-43-AI6 is a breeze, thanks to its compact dimensions and lightweight design. The coupler is compatible with 4.3-10 female interfaces and can be easily mounted on your antenna system. For optimal performance, ensure that the operating temperature is within the specified range of -35 °C to +85 °C (-31 °F to +185 °F) and that the device is protected from moisture and dust with its IP67 ingress protection rating.

Don't settle for subpar signal performance – upgrade your antenna system with the CommScope 15 dB Air Directional Coupler (C-15-UW-43-AI6) today. With its impressive features, technical specifications, and ease of installation, this directional coupler is the perfect solution for professionals seeking reliable and efficient signal transmission. Order now and experience the difference for yourself!
