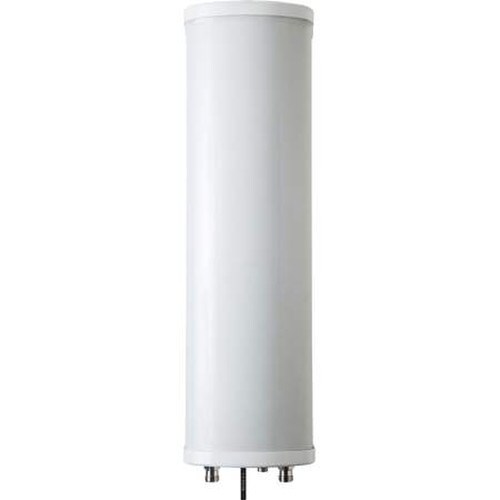

CommScope 2-Port Small Cell Antenna 2x 1695-2690 MHz (V65S-C3-1XR)

CommScope 2-Port Small Cell Antenna (V65S-C3-1XR): Enhance Your Network Performance

Key Features and Benefits

• Future-ready antenna solution with flexibility to reassign antenna
• State-of-the-art ultra wideband technology for excellent RF performance
• RF technology flexible for various applications from 1.7–2.7 GHz
• Excellent RF pattern control and tilt range for desired coverage
• 4.3-10 connector for improved PIM consistency and smaller footprint

Technical Specifications

The CommScope 2-Port Small Cell Antenna is designed to provide superior network performance in a compact and lightweight package. With its advanced ultra wideband technology, this antenna offers excellent RF performance across all bands, making it suitable for a wide range of applications, including LTE, UMTS, CDMA, GSM, AWS, WiMAX, and more.

Featuring a single band design and a light gray color, the antenna is made from durable materials, including a PVC, UV-resistant radome, a low loss circuit board radiator, and an aluminum reflector. The antenna also features a 4.3-10 female RF connector interface, located at the bottom of the unit, for easy installation and improved PIM consistency.

With its excellent RF pattern control and tilt range, the CommScope 2-Port Small Cell Antenna ensures optimal coverage and interference containment. The antenna also offers remote electrical tilt (RET) capabilities, with an 8-pin DIN female and male interface, and a power consumption of up to 13W under normal conditions.

Measuring 170mm in width, 105mm in depth, and 600mm in length, the antenna weighs just 3.8kg without the mounting kit, making it easy to install and maintain. The antenna is also designed for outdoor usage and is compliant with relevant CE product directives and ISO 9001:2015 quality management systems.

Upgrade Your Network Today

Don't let outdated antenna technology hold your network back. Upgrade to the CommScope 2-Port Small Cell Antenna (V65S-C3-1XR) and experience the benefits of advanced ultra wideband technology, excellent RF performance, and a future-ready design. Order yours today and take your network performance to the next level.
