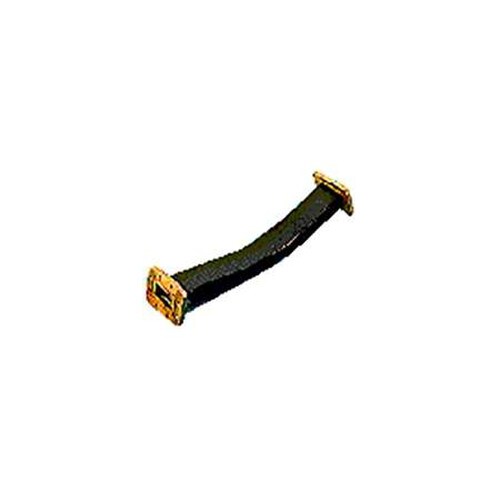

CommScope 24-Inch Twist-Flex w/ CPR112G Interface (F112CCC2)

Introducing the CommScope 24-Inch Twist-Flex with CPR112G Interface (F112CCC2)

Experience unparalleled flexibility and performance with the CommScope 24-Inch Twist-Flex w/ CPR112G Interface (F112CCC2). Designed for professionals who demand the best in waveguide technology, this FlexTwist® Flexible Twist for WR112 offers a seamless solution for your 7.125-8.5 GHz frequency needs. With its robust construction and advanced features, the F112CCC2 is the perfect addition to your communication system.

Key Features and Benefits

• High-quality FlexTwist® Flexible Twist for WR112
• Operating frequency band of 7.125-8.5 GHz
• Low attenuation of 0.4 dB/m | 0.122 dB/ft
• High average power of 1260 W and peak power of 315 kW
• Impressive VSWR of 1.0399999618530273
• Compliant with ISO 9001:2015, ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS standards

Technical Specifications

The F112CCC2 boasts a range of impressive technical specifications, including:

• Length: 600 mm | 23.622 in
• Waveguide Size: WR112 | WG15 | R84
• Minimum Bend Radius, Multiple Bends (E Plane): 76 mm | 2.992 in
• Minimum Bend Radius, Multiple Bends (H Plane): 152 mm | 5.984 in
• Maximum Twist: 264 °/m | 80.467 °/ft
• Pressurization, maximum: 0.241 N/mm² | 35 psi

With these advanced specifications, the F112CCC2 is designed to provide optimal performance and reliability in a wide range of applications.

Effortless Installation and Maintenance

The CommScope 24-Inch Twist-Flex w/ CPR112G Interface (F112CCC2) is designed for easy installation and maintenance. Its flexible design allows for multiple bends in both E and H planes, ensuring a seamless fit in your communication system. The maximum twist of 264 °/m | 80.467 °/ft ensures that the F112CCC2 can be easily adjusted to suit your specific needs.

Additionally, the F112CCC2 is compliant with a range of regulatory standards, including ISO 9001:2015, ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS. This ensures that you can trust the quality and safety of this product.

Don't settle for anything less than the best when it comes to your communication system. Upgrade to the CommScope 24-Inch Twist-Flex w/ CPR112G Interface (F112CCC2) today and experience the difference in performance and flexibility that only a FlexTwist® Flexible Twist for WR112 can provide. Order now and elevate your communication capabilities to new heights!
