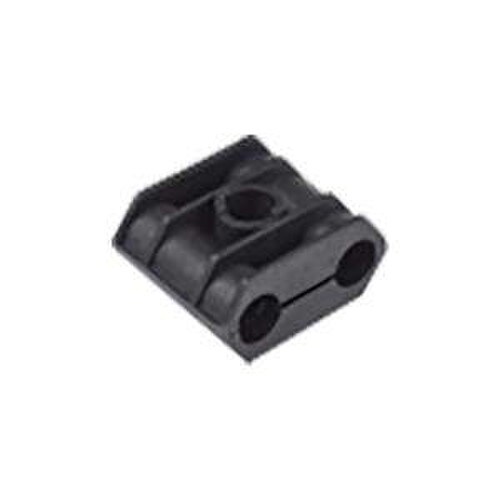

CommScope 3/8in Cable 2-Run Hanger Block (BHD-38)

Introducing the CommScope 3/8in Cable 2-Run Hanger Block (BHD-38)

Upgrade your cable management system with the CommScope BHD-38, a high-quality and durable double block hanger designed to provide structural support for your coaxial cables. This versatile hanger kit is perfect for professionals looking to improve cable organization and reduce signal interference in their installations.

Key Features and Benefits

• Double block hanger design for efficient cable management
• Compatible with 3/8in coaxial cables
• Mounting hole clearance for 3/8, 16 UNC or M10 threaded rod
• Constructed from 30% glass-filled polypropylene for enhanced durability
• Operating temperature range of -40°C to +85°C (-40°F to +185°F)
• UV resistant and compliant with various regulatory standards

Technical Specifications

The BHD-38 hanger block is designed to accommodate two 3/8in coaxial cables, with a maximum stack height of 3. Its dimensions are 36.1mm x 24.1mm x 42.9mm, and it is compatible with cable diameters ranging from 10mm to 12mm. The hanger block has a minimal effect on return loss and DTF, with a maximum of 0.1 dB for both.

Constructed from 30% glass-filled polypropylene, the BHD-38 is built to withstand harsh environmental conditions, with an operating temperature range of -40°C to +85°C (-40°F to +185°F). It also boasts a UV resistance of over 100 hours exposure in an accelerated UV life chamber, ensuring no degradation in performance over time.

Each package contains 10 hanger blocks, with a gross weight of 0.14 kg (0.309 lb). The BHD-38 is compliant with ISO 9001:2015 standards, ensuring the highest quality and safety for your installations.

Effortless Installation

Installing the BHD-38 hanger block is a breeze, thanks to its user-friendly design and compatibility with 3/8, 16 UNC, or M10 threaded rods. Simply mount the hanger block onto the threaded rod and secure your coaxial cables in place for a neat and organized cable management system.

Don't let cable clutter and signal interference hold you back. Invest in the CommScope BHD-38 3/8in Cable 2-Run Hanger Block today and experience the difference in cable organization and performance. Order now and elevate your cable management game!
