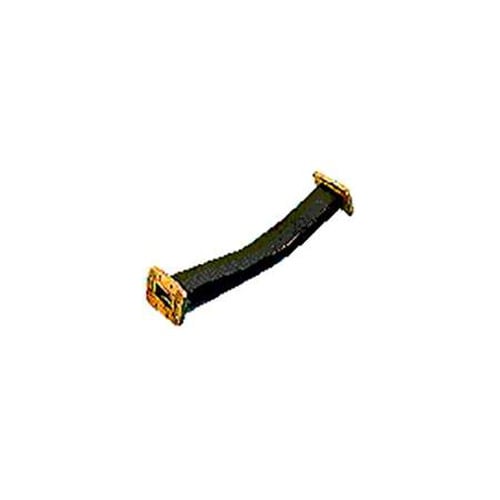

CommScope 35-Inch WR90 FlexTwist CPR90G to PBR100 Interface (F090CKB3)

Introducing the CommScope 35-Inch WR90 FlexTwist CPR90G to PBR100 Interface (F090CKB3)

Upgrade your communication system with the CommScope 35-Inch WR90 FlexTwist CPR90G to PBR100 Interface (F090CKB3), a high-quality and reliable solution for seamless connectivity. Designed for professionals who demand the best performance, this flexible twist waveguide offers exceptional electrical and mechanical specifications, ensuring optimal signal transmission and durability.

Key Features and Benefits

• Flexible twist design for easy installation and reduced signal loss
• High-quality construction for long-lasting performance
• Wide operating frequency band of 10.7 – 11.7 GHz
• Low attenuation and VSWR for efficient signal transmission
• Compliant with ISO 9001:2015, ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS standards

Technical Specifications

• Product Type: Rectangular waveguide, flexible twist
• Product Brand: FlexTwist®
• Component: Flexible Twist
• Interface: CPR90G
• Interface 2: PBR100
• Length: 900 mm | 35.433 in
• Waveguide Size: WR90 | WG16 | R100
• Attenuation: 0.43 dB/m | 0.131 dB/ft
• Average Power: 960 W
• Operating Frequency Band: 10.7 – 11.7 GHz
• Peak Power: 180 kW
• VSWR: 1.0299999713897705
• Minimum Bend Radius, Multiple Bends (E Plane): 64 mm | 2.52 in
• Minimum Bend Radius, Multiple Bends (H Plane): 127 mm | 5 in
• Maximum Twist: 310 °/m | 94.488 °/ft
• Pressurization, maximum: 0.31 N/mm² | 45 psi

With the CommScope 35-Inch WR90 FlexTwist CPR90G to PBR100 Interface (F090CKB3), you can trust that your communication system will perform at its best. The flexible twist design allows for easy installation and reduced signal loss, while the high-quality construction ensures long-lasting performance. The wide operating frequency band, low attenuation, and VSWR make this waveguide an efficient solution for signal transmission.

Moreover, this product is compliant with various regulatory standards, including ISO 9001:2015, ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS, ensuring that you are investing in a reliable and environmentally friendly product.

Don't compromise on your communication system's performance. Upgrade to the CommScope 35-Inch WR90 FlexTwist CPR90G to PBR100 Interface (F090CKB3) today and experience the difference in quality and reliability.
