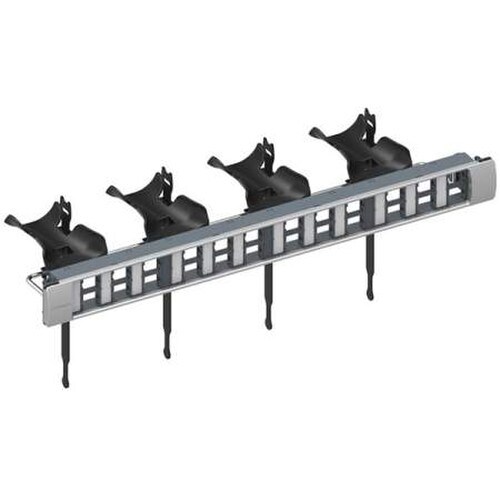

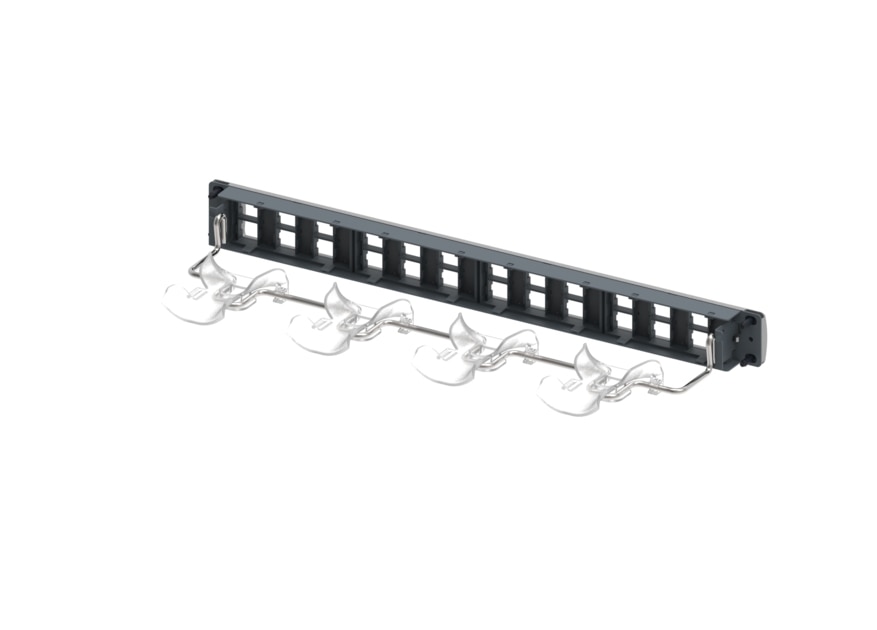

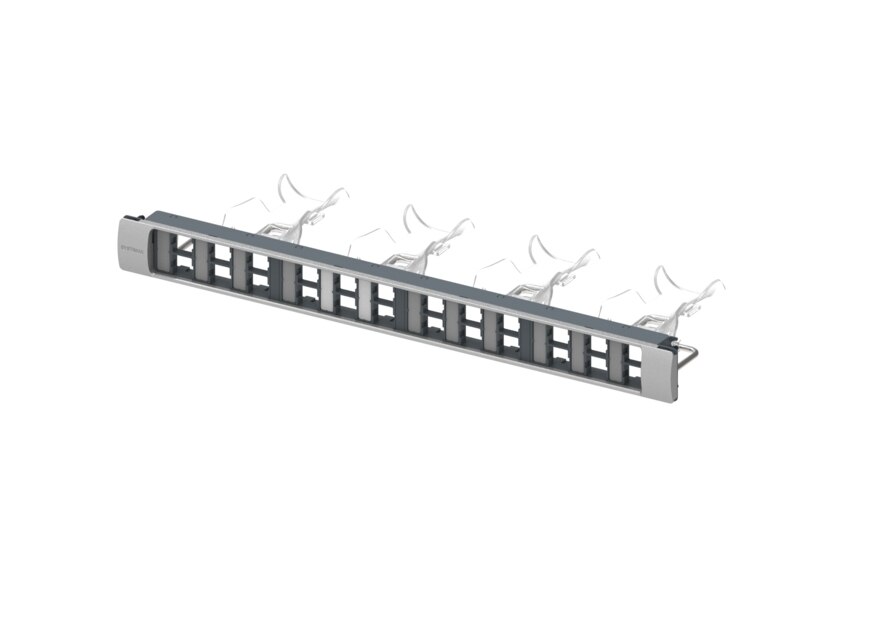

CommScope 360 Evolve 1U 24 Port Modular Panel (360-E-MOD-1U-24)
- Brand: CommScope
- P\N: 360-E-MOD-1U-24
- UPC: 729198550332
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
CommScope 360 Evolve 1U 24 Port Modular Panel (360-E-MOD-1U-24)
Experience the power of seamless connectivity with the CommScope 360 Evolve 1U 24 Port Modular Panel. This high-performance networking device is designed to provide robust and reliable connections, making it an essential addition to any professional setup.
Key Features
- 24-port modular panel for enhanced connectivity
- 1U, 360 evolve, copper-based for superior data transmission
- High-impact, flame retardant, thermoplastic construction for durability and safety
With the CommScope 360 Evolve 1U 24 Port Modular Panel, you can enjoy the benefits of a high-quality, reliable, and efficient networking device. Its 24-port configuration allows for extensive connectivity, while its copper-based construction ensures optimal data transmission. Plus, its high-impact, flame retardant, thermoplastic material offers enhanced durability and safety, making it a smart choice for any professional setup.
Don't compromise on your connectivity needs. Choose the CommScope 360 Evolve 1U 24 Port Modular Panel for a seamless and efficient networking experience. Order now and experience the difference!
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | SYSTIMAX® |
| Product Type | RJ45 patch panel |
| Product Brand | SYSTIMAX 360™ |
| Product Series | M Series |
General Specifications
| ANSI/TIA Category | NA |
| Cable Type | Unshielded |
| Color | Cool gray |
| Modules, quantity | 24 |
| Panel Style | Straight |
| Rack Type | EIA 19 in |
| Rack Units | 1 |
| Total Ports, quantity | 24 |
| Wiring | T568A | T568B |
Dimensions
| Height | 44.45 mm | 1.75 in |
| Label Height | 10.922 mm | 0.43 in |
| Width | 482.6 mm | 19 in |
| Depth | 40.64 mm | 1.6 in |
| Depth, with cable management | 170.18 mm | 6.7 in |
| Label Length | 33.782 mm | 1.33 in |
| Compatible Diameter Over Dielectric, maximum | 1.168 mm | 0.046 in |
| Compatible Diameter Over Dielectric, minimum | 0.762 mm | 0.03 in |
Electrical Specifications
| Current Rating at Temperature | 1.5 A @ 20 °C | 1.5 A @ 68 °F |
| Dielectric Withstand Voltage, RMS, conductive surface | 1,500 Vac @ 60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact | 1,000 Vac @ 60 Hz |
| Insulation Resistance, minimum | 500 mOhm |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic | Powder-coated steel |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL | cUL |
Packaging and Weights
| Packaging Material | Eco-friendly, single-use plastics-free |
| Packaging quantity | 1 |
| Weight, net | 0.499 kg | 1.1 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
