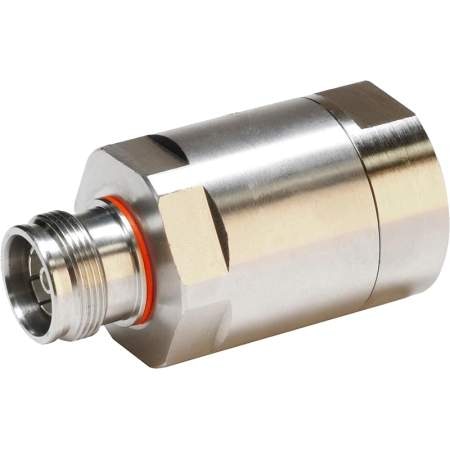

CommScope 4.3-10 Female for 7/8in LDF5-50A Cable (L5HF-S)

CommScope 4.3-10 Female Connector for 7/8in LDF5-50A Cable (L5HF-S)

Key Features and Benefits

Introducing the CommScope 4.3-10 Female Connector, a high-quality connector designed for professionals seeking reliable and efficient connectivity. This connector ensures optimal performance and durability in various environments. Here are its key features and benefits:

• Compatible with AVA5-50 cable family
• Silver-plated inner contact for enhanced conductivity
• Trimetal outer contact plating for increased durability
• Supports operating frequency band of 0 – 3700 MHz
• High shielding effectiveness of -130 dB
• Environmentally resistant with an operating temperature range of -40 °C to +85 °C
• Compliant with ISO 9001:2015, ROHS and UK-ROHS standards

Technical Specifications

The CommScope 4.3-10 Female Connector offers a secure and stable connection with its straight body style and captivated inner contact attachment method. Here are its technical specifications:

• Dimensions: 64.01 mm in length and 34.8 mm in diameter
• Electrical specifications: 3rd order IMD at frequency of -116 dBc @ 1800 MHz, insertion loss coefficient of 0.05, and an average power at frequency of 3.0 kW @ 900 MHz
• Cable impedance: 50 ohm
• Connector impedance: 50 ohm
• Operating temperature range: -40 °C to +85 °C
• Storage temperature range: -55 °C to +85 °C
• Passed corrosion, moisture resistance, thermal shock, and vibration tests
• Packaging and weight: 204 g

Upgrade your wireless and radiating connections with the CommScope 4.3-10 Female Connector. With its advanced features and compliance with industry standards, this connector is the perfect solution for professionals seeking to enhance their connectivity. Don't settle for subpar connections. Invest in the CommScope 4.3-10 Female Connector for 7/8in LDF5-50A Cable and experience the difference in performance and reliability. Order yours today and experience the benefits of a secure and efficient connection.
