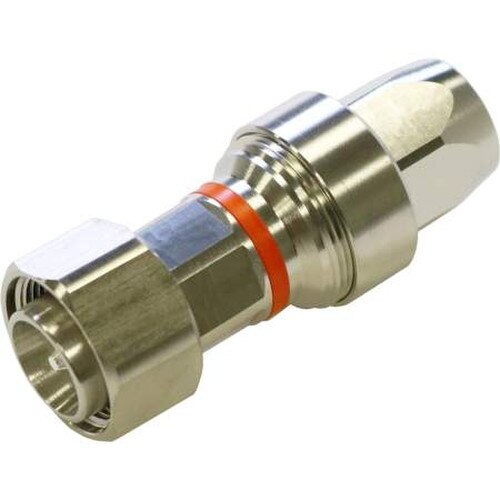

CommScope 4.3-10 Male Connector for 1/2in FSJ4-50B Cable (F4HM-D)

Introducing the CommScope 4.3-10 Male Connector for 1/2in FSJ4-50B Cable (F4HM-D)

Upgrade your wireless and radiating connections with the CommScope 4.3-10 Male Connector for 1/2in FSJ4-50B Cable (F4HM-D). Designed for professionals who demand the best in performance and reliability, this connector is part of the HELIAX® product series and is compatible with FSJ4-50B and FSJ4RK-50B cables.

Key Features and Benefits

• High-quality 4.3-10 male interface for optimal signal transmission
• Compatible with 1/2in FSJ4-50B and FSJ4RK-50B cables
• Excellent shielding effectiveness of -110 dB
• Wide operating frequency band of 0 – 7500 MHz
• Low insertion loss coefficient of 0.05
• High connector retention tensile force and torque
• Environmentally friendly, compliant with RoHS, China-RoHS, REACH-SVHC, and UK-RoHS regulations

Technical Specifications

• Body Style: Straight
• Cable Family: FSJ4-50B
• Inner Contact Attachment Method: Captivated
• Inner Contact Plating: Silver
• Interface: 4.3-10 Male
• Mounting Angle: Straight
• Outer Contact Attachment Method: Crush-flare
• Outer Contact Plating: Trimetal
• Dimensions: Length - 62.48 mm (2.460 in), Diameter - 24.89 mm (0.980 in)
• Nominal Size: 1/2 in

With its robust design and high-quality materials, the CommScope 4.3-10 Male Connector for 1/2in FSJ4-50B Cable (F4HM-D) ensures reliable and efficient connections for your wireless and radiating systems. Its wide operating frequency band and low insertion loss coefficient make it an ideal choice for professionals who require top-notch performance.

Moreover, this connector is environmentally friendly and compliant with various international regulations, ensuring that you are using a product that meets the highest standards of safety and sustainability.

Upgrade Your Connections Today

Don't settle for subpar connections. Invest in the CommScope 4.3-10 Male Connector for 1/2in FSJ4-50B Cable (F4HM-D) and experience the difference in performance and reliability. Order now and elevate your wireless and radiating systems to new heights.
