CommScope 4.3-10 Male Connector for 1/4in FSJ1-50A Cable (F1HM-D)

  • Brand: CommScope
  • P\N: F1HM-D
  • UPC: 646444582582
(0)No Reviews yet

Availability: Backorder


Your Price: $42.00

Do you have questions?

Please contact our experts for assistance.

Description

Description

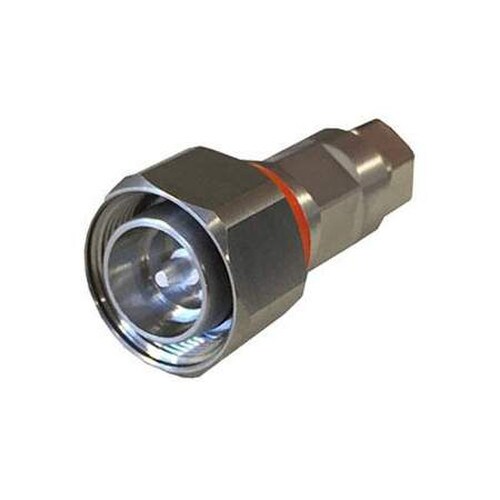

Introducing the CommScope 4.3-10 Male Connector for 1/4in FSJ1-50A Cable (F1HM-D)

Upgrade your wireless and radiating connections with the CommScope 4.3-10 Male Connector for 1/4in FSJ1-50A Cable (F1HM-D). Designed for professionals who demand high-quality and reliable connections, this connector is part of the HELIAX® product series and is compatible with FSJ1-50A cable family.

Key Features and Benefits

  • High-quality 4.3-10 male interface for optimal signal transmission
  • Straight body style for easy installation
  • Clamp outer contact attachment method for secure connections
  • Low insertion loss coefficient for minimal signal loss
  • Wide operating frequency band (0 – 12000 MHz) for versatile applications
  • High shielding effectiveness (-110 dB) for reduced interference
  • Robust mechanical and environmental specifications for long-lasting performance

Technical Specifications

With a length of 48.77 mm (1.920 in) and a diameter of 23.88 mm (0.940 in), the CommScope 4.3-10 Male Connector is designed to fit seamlessly with your 1/4in FSJ1-50A cable. The connector features silver inner contact plating and trimetal outer contact plating for enhanced durability and performance.

Electrical specifications include a 3rd order IMD dynamic of -116 dBm, an insertion loss coefficient of 0.05, and a maximum peak power of 10 kW. The connector also boasts a 50 ohm cable and connector impedance, ensuring compatibility with standard coaxial cable systems.

Designed to withstand harsh environments, the CommScope 4.3-10 Male Connector has an operating temperature range of -55 °C to +85 °C (-67 °F to +185 °F) and is compliant with various IEC test methods for corrosion, moisture resistance, thermal shock, and vibration.

Easy Installation and Maintenance

The CommScope 4.3-10 Male Connector features a captivated inner contact attachment method and a clamp outer contact attachment method, making installation quick and easy. With a mechanical shock test method of IEC 60068-2-27 and an interface durability of 100 cycles, this connector is built to last, ensuring minimal maintenance and downtime.

Upgrade your wireless and radiating connections today with the CommScope 4.3-10 Male Connector for 1/4in FSJ1-50A Cable (F1HM-D). Experience the difference in performance, reliability, and durability that this high-quality connector can bring to your network. Don't wait – order now!
