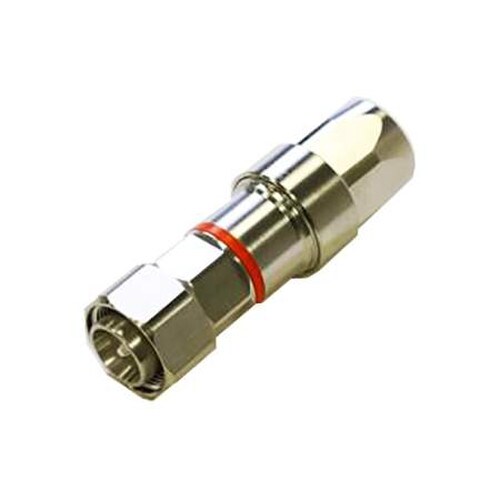

CommScope 4.3-10 Male for 1/2" (L4HM-D)

Introducing the CommScope 4.3-10 Male for 1/2" (L4HM-D)

Upgrade your wireless and radiating connector system with the high-performance CommScope 4.3-10 Male for 1/2" (L4HM-D). Designed for professionals seeking reliable and efficient connectivity, this HELIAX® product series connector is perfect for use with LDF4-50A cable families. Experience enhanced signal transmission and reduced interference with this top-quality connector from CommScope.

Key Features and Benefits

• Compatible with LDF4-50A cable families
• 4.3-10 Male interface for seamless connectivity
• High-quality silver inner contact plating
• Trimetal outer contact plating for durability
• Low insertion loss coefficient for improved signal transmission
• Wide operating frequency band (0 – 8800 MHz)
• Excellent shielding effectiveness (-110 dB)
• Environmentally tested for corrosion, moisture, and thermal shock resistance

Technical Specifications

The CommScope 4.3-10 Male for 1/2" (L4HM-D) boasts impressive technical specifications, ensuring optimal performance and reliability. With a straight body style and clamp outer contact attachment method, this connector is designed for easy installation and secure connections. The connector's dimensions are 73.15 mm in length and 24.89 mm in diameter, with a nominal size of 1/2 inch.

Electrical specifications include a 3rd order IMD at frequency of -116 dBm @ 910 MHz, an average power at frequency of 600.0 W @ 900 MHz, and a cable impedance of 50 ohm. The connector's operating temperature range is -55 °C to +85 °C (-67 °F to +185 °F), ensuring reliable performance in various environments.

Environmental testing has been conducted to ensure the connector's durability and resistance to corrosion, moisture, and thermal shock. The connector is also compliant with ISO 9001:2015, ROHS and UK-ROHS regulations.

Upgrade Your Connectivity Today

Don't settle for subpar connectors that compromise your signal transmission and overall system performance. Invest in the CommScope 4.3-10 Male for 1/2" (L4HM-D) and experience the difference in quality and reliability. With its impressive features and technical specifications, this connector is the perfect choice for professionals seeking to enhance their wireless and radiating connector systems. Upgrade your connectivity today and experience the CommScope difference!
