CommScope 4.3-10 Male Push Pull for 1/2in LDF4-50A Cable (L4HMP-D)

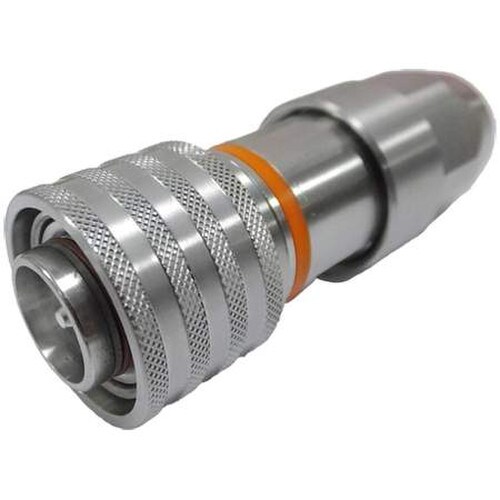

Introducing the CommScope 4.3-10 Male Push Pull Connector for 1/2in LDF4-50A Cable (L4HMP-D)

Upgrade your wireless and radiating connections with the CommScope 4.3-10 Male Push Pull Connector for 1/2in LDF4-50A Cable (L4HMP-D). Designed for professionals who demand high-quality, reliable connections, this HELIAX® product series connector ensures optimal performance and durability in various environments.

Key Features and Benefits

• Compatible with LDF4-50A cable family
• High shielding effectiveness of -110 dB
• Wide operating frequency band of 0 – 8800 MHz
• Low insertion loss coefficient of 0.05
• High connector retention tensile force and torque
• Environmentally tested for corrosion, moisture, and thermal shock resistance
• Compliant with ISO 9001:2015, ROHS, CHINA-ROHS, and UK-ROHS standards

With its straight body style and clamp outer contact attachment method, the CommScope 4.3-10 Male Push Pull Connector offers a secure and stable connection. The silver-plated inner contact and trimetal-plated outer contact ensure excellent conductivity and corrosion resistance, while the captivated inner contact attachment method provides a reliable connection.

Technical Specifications

• Dimensions: Length - 73.15 mm (2.880 in), Diameter - 24.89 mm (0.980 in)
• Nominal Size: 1/2 in
• Impedance: 50 ohm (cable and connector)
• Operating Temperature: -55 °C to +85 °C (-67 °F to +185 °F)
• Weight, net: 122.9 g (0.271 lb)

Designed, manufactured, and distributed under the ISO 9001:2015 quality management system, the CommScope 4.3-10 Male Push Pull Connector meets or exceeds industry standards for performance and reliability. Its environmental testing certifications ensure that it can withstand harsh conditions, making it suitable for a wide range of applications.

Upgrade Your Connections Today

Don't settle for subpar connections. Invest in the CommScope 4.3-10 Male Push Pull Connector for 1/2in LDF4-50A Cable (L4HMP-D) and experience the difference in performance and reliability. With its impressive features and technical specifications, this connector is the ideal choice for professionals who demand the best. Upgrade your connections today and enjoy the benefits of a high-quality, reliable connector.
