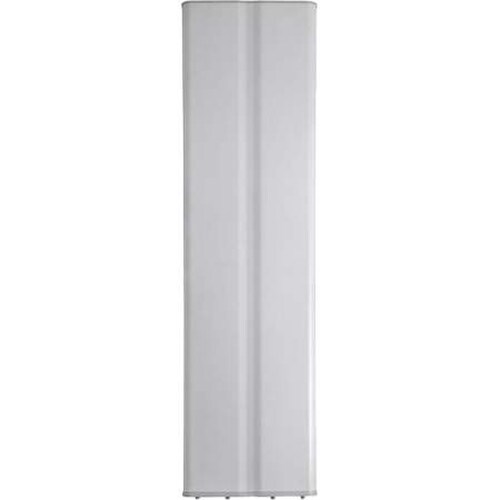

CommScope 4-Port Sector Antenna 4x 617-806MHz 65deg HPBW (FF-65C-R1)

CommScope 4-Port Sector Antenna: Boost Your Network Performance

Experience unparalleled network coverage and performance with the CommScope 4-Port Sector Antenna (FF-65C-R1). Designed for outdoor use, this high-quality antenna offers a wide operating frequency band and advanced features to ensure optimal signal strength and reliability. Ideal for professionals seeking to enhance their communication capabilities, this antenna is a must-have addition to any network setup.

Key Features and Benefits

• Wide operating frequency band (617-806 MHz) for versatile use
• 65° horizontal beamwidth for extensive coverage
• 600MHz-Ready Antenna Technology for future-proof performance
• Supports up to 10° of mechanical down tilt for precise signal direction
• Remote Electrical Tilt (RET) for easy adjustments
• Durable construction with fiberglass radome and aluminum radiator
• 4.3-10 Female RF connectors for secure connections

Technical Specifications

With a single-band antenna type and light gray color, the CommScope 4-Port Sector Antenna is designed for outdoor use and features wind loading figures validated by wind tunnel measurements. The radome material is made of UV-resistant fiberglass, while the radiator material consists of aluminum and low-loss circuit board. The antenna has a total of four RF connectors, all located at the bottom.

The RET interface includes 8-pin DIN Female and Male connectors, with an input voltage of 10-30 Vdc. The internal RET supports the low band, and the antenna has a maximum power consumption of 10 W under normal conditions. The antenna operates within the 617-806 MHz frequency band and has a 50-ohm impedance.

Dimensions of the antenna are 640 mm (width), 235 mm (depth), and 2437 mm (length), with a net weight of 53.5 kg without the mounting kit. The antenna offers a maximum total input power of 500 W at 50 °C and a gain of 15.4-15.6 dBi. The horizontal beamwidth ranges from 64-63 degrees, while the vertical beamwidth ranges from 10.3-9.2 degrees.

Additional electrical specifications include a front-to-back ratio at 180° of 33-31 dB, isolation of 28 dB for both cross-polarization and inter-band, and a VSWR/return loss of 1.5/14.0 dB. The antenna also features a PIM of -153 dBc (3rd order, 2 x 20 W) and a maximum input power per port at 50°C of 250 W.

Regulatory compliance and certifications for the CommScope 4-Port Sector Antenna include ISO 9001:2015, RoHS, China-RoHS, and UK-RoHS.

Upgrade your network performance today with the CommScope 4-Port Sector Antenna (FF-65C-R1) and experience the difference in signal strength and reliability. Don't wait – order now!
