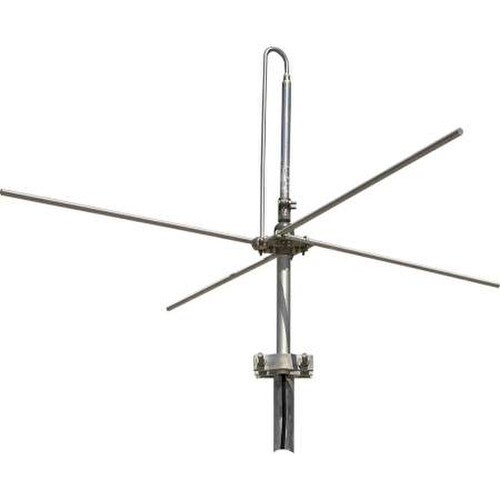

CommScope 450-470 MHz Unity Gain Ground Plan Antenna (DB201-P)
- Brand: CommScope
- P\N: DB201-P
- UPC: 729198629717
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
CommScope 450-470 MHz Unity Gain Ground Plane Antenna (DB201-P)
Experience unparalleled communication with the CommScope 450-470 MHz Unity Gain Ground Plane Antenna (DB201-P). Designed for professionals who demand the best in communication technology, this antenna offers exceptional performance and reliability. With its omnidirectional coverage and easy installation, the DB201-P is the perfect solution for enhancing your communication capabilities.
Key Features
- Omnidirectional antenna
- Mounts to top of tower, pole, or building
- Field tunable to desired frequency, cutting chart included
Don't settle for subpar communication. Upgrade to the CommScope 450-470 MHz Unity Gain Ground Plane Antenna (DB201-P) and experience the difference that quality technology can make. Order yours today and take your communication capabilities to new heights!
Specifications
General Specifications
| Antenna Type | Omni |
| Band | Single band |
| Color | Silver |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radiator Material | Aluminum |
| RF Connector Interface | N Male |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Width | 226.1 millimeter| 8.902 inch |
| Depth | 218.4 millimeter| 8.598 inch |
| Length | 482.6 millimeter| 19 inch |
| Net Weight, without mounting kit | 2.7 kg | 5.952 lbs. |
Electrical Specifications
| Bandwidth | 2% of frequency |
| Impedance | 50 ohm |
| Operating Frequency Band | 450 – 470 MHz |
| Polarization | Vertical |
Electrical Specifications
| Frequency Band, MHz | 450–470 |
|---|---|
| Gain, dBi | 2.1 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 78 |
| Beam Tilt, degrees | 0 |
| VSWR | Return loss, dB | 1.5 | 14.0 |
| Input Power per Port, maximum, watts | 500 |
Mechanical Specifications
| Wind Loading @ Velocity, maximum | 53.4 N @ 100 mph (12.0 lbf @ 100 mph) |
| Wind Speed, maximum | 201 km/h (125 mph) |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
