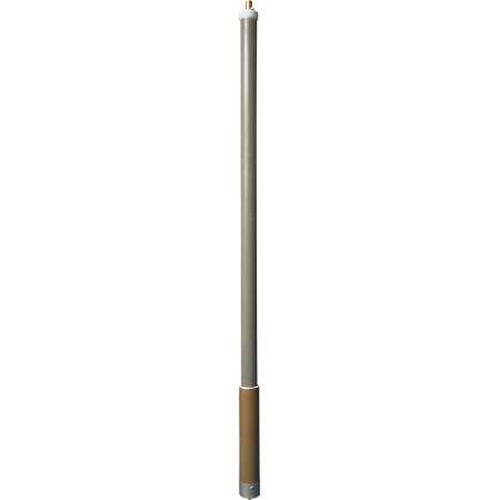

CommScope 450-482MHz 3dB Fiberglass Onmidirectional Antenna (DB633-C)

CommScope 450-482MHz 3dB Fiberglass Omnidirectional Antenna (DB633-C)

Key Features and Benefits

• Wide operating frequency band of 450-482 MHz
• 360° horizontal beamwidth for comprehensive coverage
• Rugged, durable design with heavy-duty radome for minimal tip deflection
• Invert mountable for versatile installation options
• High-quality materials, including UV-resistant fiberglass and brass radiator
• Compliant with various regulatory standards, ensuring quality and safety

Enhance Your Communication Capabilities

Introducing the CommScope 450-482MHz 3dB Fiberglass Omnidirectional Antenna (DB633-C), a high-performance, single-band antenna designed to provide reliable and efficient communication in various environments. With its wide operating frequency band and 360° horizontal beamwidth, this antenna ensures comprehensive coverage and seamless connectivity for your communication needs.

Durable and Versatile Design

Constructed with a rugged, heavy-duty radome and UV-resistant fiberglass material, the DB633-C antenna is built to withstand harsh outdoor conditions and maintain its performance over time. The antenna's invert mountable feature allows for versatile installation options, making it suitable for a wide range of applications.

Technical Specifications

• Antenna Type: Omni
• Operating Frequency Band: 450 – 482 MHz
• Polarization: Vertical
• Gain, dBi: 5.1
• Beamwidth, Horizontal, degrees: 360
• Beamwidth, Vertical, degrees: 35
• Beam Tilt, degrees: 0
• VSWR | Return loss, dB: 1.5 | 14.0
• Input Power per Port, maximum, watts: 500
• Dimensions: Length - 1435 mm | 56.496 in, Outer Diameter - 50.8 mm | 2 in
• Net Weight, without mounting kit: 3.6 kg | 7.937 lb

Regulatory Compliance and Certifications

The CommScope DB633-C antenna is designed, manufactured, and distributed under the ISO 9001:2015 quality management system. It is also compliant with various regulatory standards, including ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS, ensuring the highest quality and safety for your communication needs.

Upgrade your communication capabilities with the CommScope 450-482MHz 3dB Fiberglass Omnidirectional Antenna (DB633-C) today and experience the difference in performance and reliability. Don't miss out on this opportunity to enhance your communication network – order now!
