CommScope Mount Kit for Microwave Antenna 4 Feet (RM-DM-4)
- Brand: CommScope
- P\N: RM-DM-4
- UPC: 729198517328
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

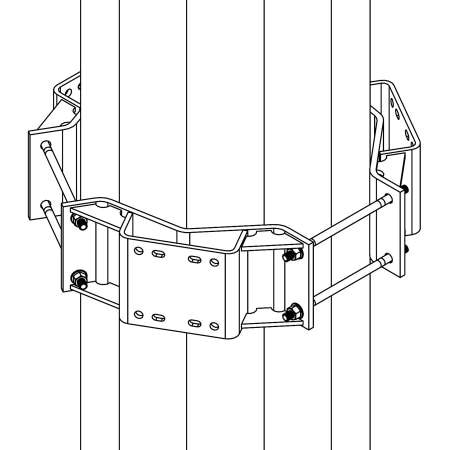

CommScope 4ft Microwave Antenna Dual Ring Mount Kit (RM-DM-4)
COMMSCOPE's RM-DM-4 4 foot microwave antenna dual ring mount kit. Includes ring mounts, a 4 1/2 inch OD x 63 inch long pipe, and hardware.
Specifications
Product Classification
| Product Type | Universal ring mount |
General Specifications
| Mounting | Monopole, 254–1270 mm (10–50 inch) OD |
| Pipe, quantity | 1 |
| Sectors, quantity | 1 |
Dimensions
| Height | 254 mm | 10 inch |
| Width | 736.6 mm | 29 inch |
| Length | 1600.2 mm | 63 inch |
| Pipe Length | 1600.2 mm | 63 inch |
| Mounting Diameter, maximum | 1270 mm | 50 inch |
| Mounting Diameter, minimum | 381 mm | 15 inch |
| Pipe Outer Diameter | 114.3 mm | 4.5 inch |
| Mounting Circumference, maximum | 3990.34 mm | 157.1 inch |
| Mounting Circumference, minimum | 1196.34 mm | 47.1 inch |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Hardware | Mount | Pipe |
| Packaging quantity | 1 |
| Weight, net | 156.5 kg | 345.023 lbs. |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ROHS | Compliant/Exempted |
CHINA-ROHS | Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
