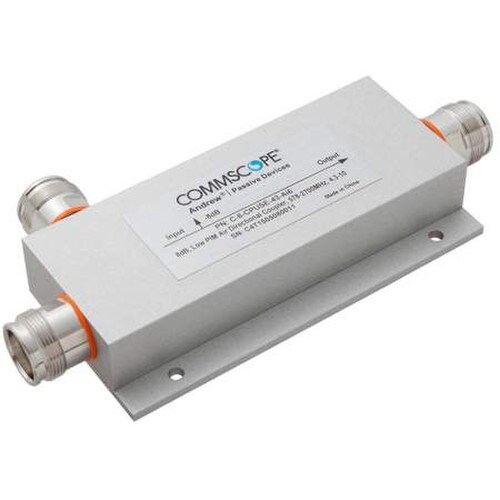

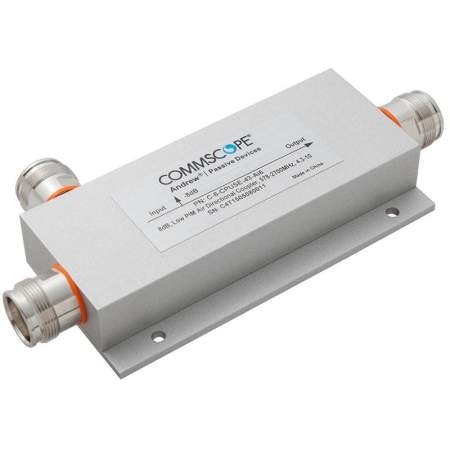

CommScope 555-2700 MHz 8 dB Low PIM Air Directional Coupler (C-8-CPUSE-43-AI6)

Commscope's C-8-CPUSE-43-AI6, 8 dB air line directional coupler supports indoor and outdoor applications. Each unit couples a defined fraction of a high power cellular signal with minimal reflections or loss. The wide frequency range allows use with multiband antennas, radiating cable systems, and in wireless base stations. The dissipative loss is minimized and reliability enhanced.
Key Features

• Frequency Range 555-2700 MHz
• Coupling 8.0 dB
• Maximum Power 300 W
• Coupling Tolerance ±1.0 dB @ 575-2700 MHz | ±1.5 dB @ 555-575 MHz
• Peak Power, maximum 1 kW
• RF Connectors 4.3-10 Female
• Impedance 50 ohm
• Maximum VSWR 1.2:1
• Dimensions 7.1" L x 3.0" W x 1.8" H
