CommScope 555-6000MHz WB 4-Way Low PIM Reactive HP Splitter (S-4-UW-H-43-i6)

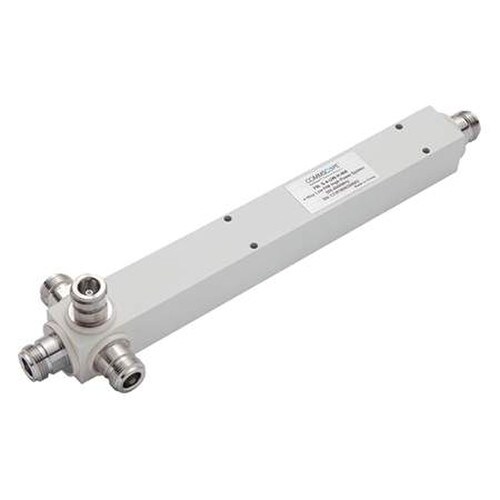

Introducing the CommScope 555-6000MHz WB 4-Way Low PIM Reactive HP Splitter (S-4-UW-H-NI6)

Experience unparalleled signal splitting performance with the CommScope 555-6000MHz WB 4-Way Low PIM Reactive HP Splitter (S-4-UW-H-NI6). Designed for both indoor and outdoor applications, this high-quality splitter ensures reliable and efficient signal distribution across a wide frequency range. Upgrade your communication system with this powerful and versatile device.

Key Features and Benefits

• Ultra Wideband Four-way Low PIM Reactive High Power Splitter, 555–6000 MHz
• Compatible with a wide range of regional availability: Asia, Australia/New Zealand, EMEA, Latin America, and North America
• Designed for both indoor and outdoor use
• High-quality silver inner contact plating and trimetal outer contact plating
• Compact and lightweight design
• Compliant with ISO 9001:2015, ROHS, CHINA-ROHS, and UK-ROHS standards

Technical Specifications

With impressive electrical and mechanical specifications, the CommScope 555-6000MHz WB 4-Way Low PIM Reactive HP Splitter (S-4-UW-H-NI6) delivers exceptional performance and durability. Its low insertion loss and high power rating ensure efficient signal distribution, while its robust construction guarantees long-lasting reliability.

• 3rd Order IMD: -163 dBc
• Average Power, maximum: 300 W
• Impedance: 50 ohm
• Operating Frequency Band: 555 – 6000 MHz
• Peak Power, maximum: 3 kW
• Power Rating, Splitting: 300 W
• Reflected Power, maximum: 300 W
• Split Loss: 6 dB
• VSWR at Frequency Band: 1.25 @ 555–2700 MHz | 1.25:1 @ 2700–3800 MHz | 1.3:1 @ 3800–6000 MHz

Environmental Specifications

Designed to withstand harsh environmental conditions, the CommScope 555-6000MHz WB 4-Way Low PIM Reactive HP Splitter (S-4-UW-H-NI6) is built to last. Its operating temperature range and corrosion resistance ensure optimal performance in any climate, while its IP67 ingress protection rating guarantees protection against dust and water.

Upgrade Your Communication System Today

Don't settle for subpar signal splitting performance. Invest in the CommScope 555-6000MHz WB 4-Way Low PIM Reactive HP Splitter (S-4-UW-H-NI6) and experience the difference that high-quality signal distribution can make. With its impressive features and specifications, this splitter is the perfect addition to any communication system. Order yours today and enjoy the benefits of superior signal splitting performance.
