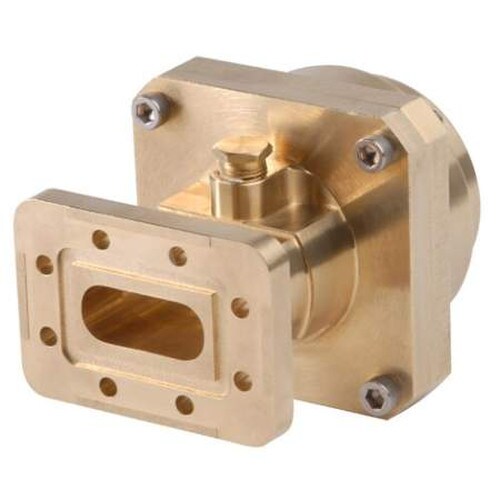

CommScope 7.125-8.5GHz CPR112G Connector (177SE)
- Brand: CommScope
- P\N: 177SE
- UPC: 646444751292
Do you have questions?
Please contact our experts for assistance.
Description
Description
CommScope 7.125-8.5GHz CPR112G Connector (177SE): Enhance Your Communication System
Key Features and Benefits
Introducing the high-performance CommScope 7.125-8.5GHz CPR112G Connector (177SE). Designed for elliptical waveguide 77, this connector ensures a reliable and efficient connection for your professional needs. With its robust construction and advanced features, the 177SE connector is the perfect choice for those looking to enhance their communication infrastructure.
- Wide operating frequency band of 7.125-8.5 GHz for versatile use
- Low insertion loss of 0.01 dB for minimal signal degradation
- High peak power handling of 63.00 kW @ 7.80 GHz for demanding applications
- Pressurizable design for enhanced performance and reliability
- Compliant with ISO 9001:2015 standards for quality assurance
Technical Specifications
The CommScope 177SE connector features a straight, fixed-tuned body style with an unplated inner and outer contact. It is designed for attachment using either a tab-flare or tool-flare method. The connector is pressurizable and made from high-quality brass material, ensuring durability and long-lasting performance.
- Width: 3.48 inches
- Length: 3.63 inches
- Transition length: 2.17 inches
- Compatible with WR112, WG15, and R84 waveguide sizes
- Operating temperature range: -55 °C to +85 °C (-67 °F to +185 °F)
- Storage temperature range: -55 °C to +85 °C (-67 °F to +185 °F)
- Net weight: 1.4 kg (3.086 lb)
Don't settle for subpar connections in your professional communication system. Invest in the CommScope 7.125-8.5GHz CPR112G Connector and experience the difference in performance and reliability. With its advanced features and compliance with various regulatory standards, the 177SE connector is the ideal choice for those looking to enhance their communication infrastructure. Upgrade your system today and experience the benefits of the CommScope 177SE connector.
