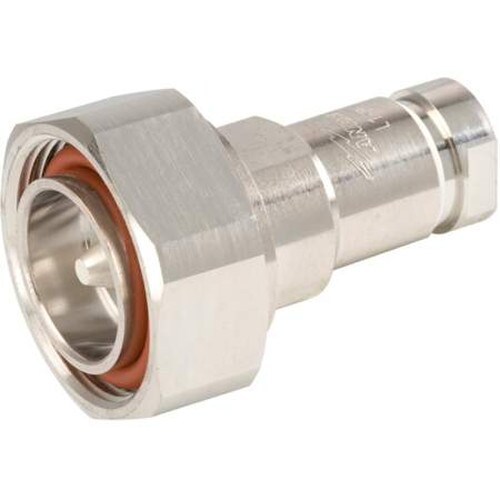

CommScope 7-16 DIN Male Positive Lock for 1/4in LDF150 (L1TDM-PL)

Introducing the CommScope 7-16 DIN Male Positive Lock for 1/4in LDF150 (L1TDM-PL)

Upgrade your wireless and radiating connector system with the high-quality CommScope 7-16 DIN Male Positive Lock for 1/4in LDF150 (L1TDM-PL). Designed for professionals who demand the best in performance and reliability, this connector is part of the renowned HELIAX® product series and offers exceptional electrical and mechanical specifications.

Key Features and Benefits

• Compatible with LDF1-50 cable family
• 7-16 DIN Male interface for secure connections
• High shielding effectiveness of -110 dB
• Wide operating frequency band of 0 – 8000 MHz
• Low insertion loss coefficient of 0.05
• Robust construction with silver-plated inner contact and trimetal-plated outer contact
• Compact dimensions for easy installation

Technical Specifications

With a straight body style and captivated inner contact attachment method, the L1TDM-PL connector ensures a secure and stable connection. The connector is not pressurizable, but it offers a high insulation resistance of 10000 mOhm and a maximum RF operating voltage of 778 V. The connector's mechanical specifications include a coupling nut proof torque of 35 N-m and a connector retention tensile force of 449.27 N.

Environmentally friendly, the L1TDM-PL is compliant with ISO 9001:2015 standards. It can operate in temperatures ranging from -55 °C to +85 °C and withstand various environmental tests, including corrosion, moisture resistance, thermal shock, and vibration.

Easy Installation and Maintenance

The L1TDM-PL connector is designed for easy installation and maintenance, with a self-flare outer contact attachment method and a straight mounting angle. The connector's compact dimensions (34.54 mm x 34.54 mm x 45.97 mm) and lightweight design (0.27 lbs) make it an ideal choice for professionals who require a reliable and efficient connector solution.

Improve Your Connectivity Today

Don't settle for subpar connectors that can compromise your wireless and radiating systems. Invest in the CommScope 7-16 DIN Male Positive Lock for 1/4in LDF150 (L1TDM-PL) and experience the difference in performance and reliability. Order now and enhance your connectivity with this top-of-the-line connector.
