CommScope 890-960 MHz 6dB Fiberglass Omnidirectional Antenna (DB586-Y)
- Brand: CommScope
- P\N: DB586-Y
- UPC: 729198937430
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
CommScope 890-960 MHz 6dB Fiberglass Omnidirectional Antenna (DB586-Y)

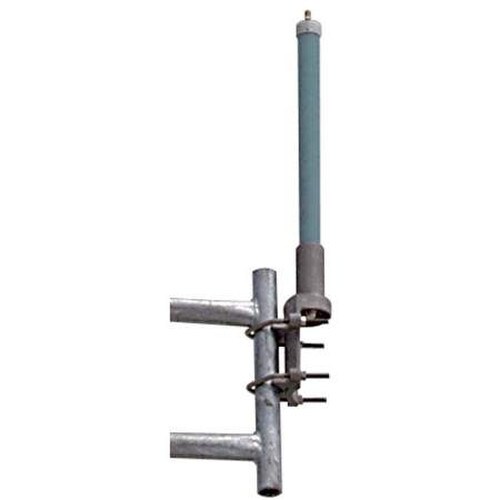

ANDREW's DB586-Y fiberglass omni antenna operates in the 890 – 960 MHz frequency range. This lightweight, low-profile omni antenna is ideal for low to moderate gain applications. The DB586-Y provides 6 dBd gain, has a maximum power input of 300 W and is terminated with an N Female connector at the bottom of the antenna. V-bolts are included for mounting. This Omni antenna meets RoHS 2002/95/EC.
Features
- Light weight, low profile omnidirectional antenna ideal for low to moderate gain applications

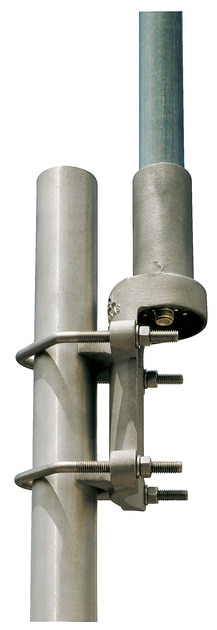

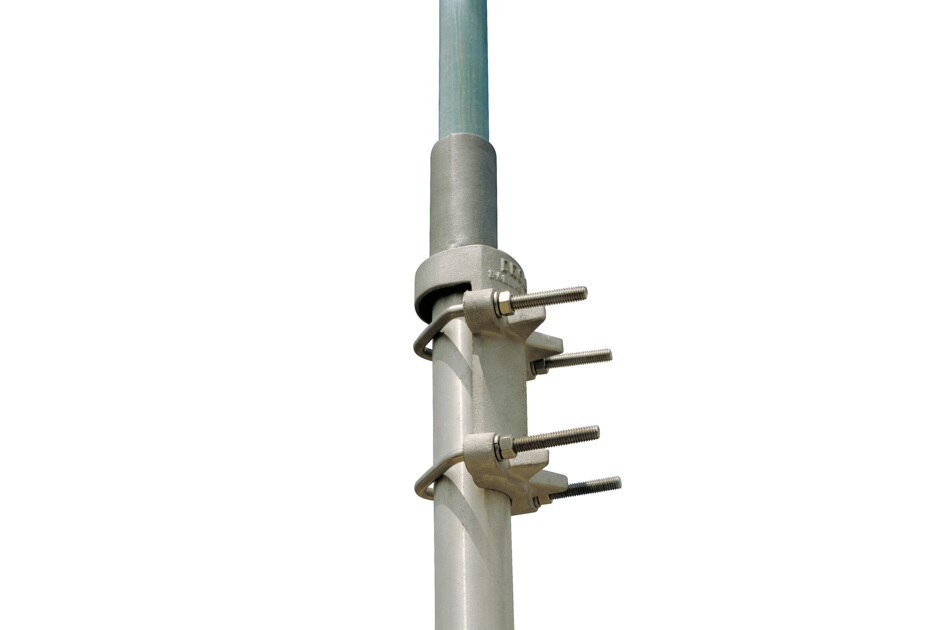

- Integral dual purpose mount allows top or side mounting
Andrew Solutions DB586-Y base station antenna can be used for point-to-multipoint applications. This mirage collinear antenna is designed with horizon blue fiberglass radome for increased durability. Drain plugs are included on both ends of this base station antenna.
Specifications
| Item Weight | 8.25 lbs. |
| Item Height | 1.5 inch |
| Item Width | 1.5 inch |
| Item Length | 59 inch |
| Gain dBd | 6 dBd |
| Gain dBi (dBi) | 8.15 dBi |
| Jumper Included | No |
| RF Connectors | N Female |
| Polarization | Vertical |
| Specific Frequency | 806-960 MHz |
| Vertical Beamwidth (Deg) | 18 |
| Maximum VSWR | 1.5:1 |
| Maximum Rated Wind Velocity | 125 milez/hour |
| Bandwidth | 70 MHz |
| Tuned Frequency (MHz) | N/A |
| Connector Placement | Bottom |
| Lightning Protection | DC Ground |
| Electrical Downtilt | Fixed |
| Fixed Electrical Downtilt | 0 deg |
| Lateral Thrust @ RWV (lb) | 20.1 |
| Frequency Band | Cellular |
