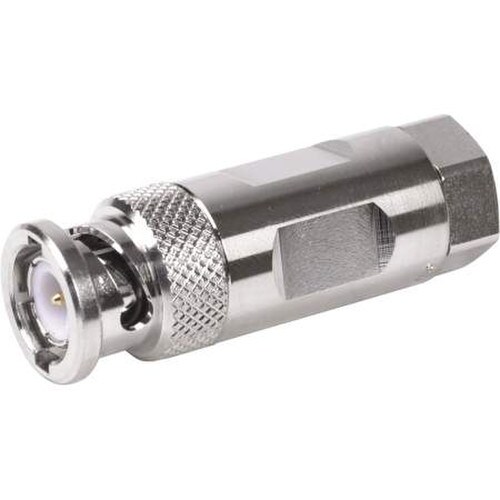

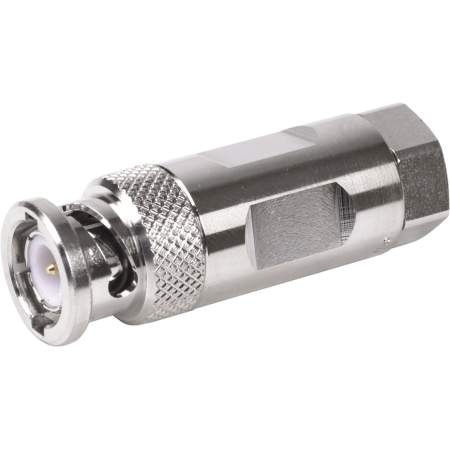

CommScope BNC Male Connector for 1/4in Super Flexible Cables (F1TBM-C)
- Brand: CommScope
- P\N: F1TBM-C
- UPC: 646444617253
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
CommScope BNC Male Connector for 1/4in Super Flexible Cables
Introducing the CommScope BNC Male Connector for 1/4in Super Flexible Cables, a high-quality connector designed for professionals who demand the best in connectivity. This connector ensures optimal performance and reliability for your communication systems.
Key Features:
- Compatible with FSJ1-50A cable family
- Gold-plated inner contact for superior conductivity
- Trimetal outer contact plating for enhanced durability
- Self-clamping outer contact attachment method for easy installation
- Impressive shielding effectiveness of -110 dB
- Wide operating frequency band of 0 – 4000 MHz
- Meets rigorous industry standards for quality and performance
Don't compromise on quality when it comes to your communication systems. Choose the CommScope BNC Male Connector and experience the difference that superior connectivity can make. Upgrade your connections today with the CommScope BNC Male Connector and experience the difference in performance and reliability. Order now!
Specifications
Specifications
Product Classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Product Series | FSJ1-50A |
General Specifications
| Body Style | Straight |
| Cable Family | FSJ1-50A |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Gold |
| Interface | BNC Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Self-clamping |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Height | 14.48 mm | 0.570 in |
| Width | 14.48 mm | 0.570 in |
| Length | 43.43 mm | 1.710 in |
| Diameter | 14.48 mm | 0.570 in |
| Nominal Size | 1/4 in |
Outline Drawing
| Click on image to enlarge. |
Electrical Specifications
| Average Power at Frequency | 0.4 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1500 V |
| Inner Contact Resistance, maximum | 2.5 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 4000 MHz |
| Outer Contact Resistance, maximum | 1 mOhm |
| Peak Power, maximum | 5 kW |
| RF Operating Voltage, maximum (vrms) | 500 V |
| Shielding Effectiveness | -110 dB |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
|---|---|---|
| 0–2000 MHz | 1.119 | 25.01 |
| 2000–3000 MHz | 1.119 | 25.01 |
| 3000–4000 MHz | 1.152 | 23.02 |
Mechanical Specifications
| Connector Retention Tensile Force | 449.27 N | 101.000 lbf |
| Coupling Nut Proof Torque | 0.6 N-m | 5.310 in lb |
| Coupling Nut Proof Torque Method | IEC 61169-16:9.3.11 |
| Coupling Nut Retention Force | 445 N | 100.040 lbf |
| Coupling Nut Retention Force Method | IEC 61169-17:9.3.11 |
| Insertion Force | 66.72 N | 15.000 lbf |
| Insertion Force Method | IEC 61169-16:9.3.5 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 32 g | 0.071 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant, Compliant/Exempted |
