CommScope - Bulkhead N Female 1/2in LDF4-50A (L4PNF-BH)

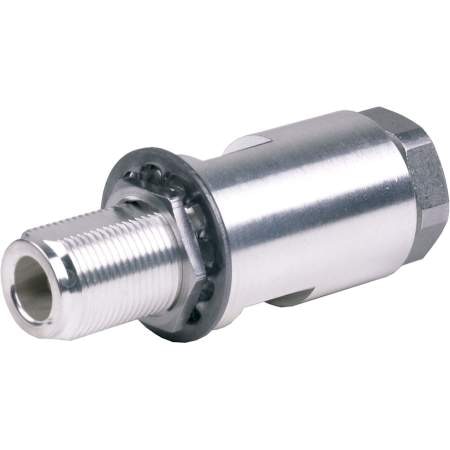

Introducing the CommScope Bulkhead N Female Connector (L4PNF-BH)

Upgrade your wireless and radiating connections with the high-quality CommScope Bulkhead N Female Connector (L4PNF-BH) from the trusted HELIAX® product series. Designed for use with 1/2 inch LDF4-50A cables, this connector ensures optimal performance and reliability for your professional applications.

Key Features and Benefits

• Gold-plated inner contact for superior conductivity
• Trimetal outer contact plating for enhanced durability
• Self-flare outer contact attachment method for easy installation
• Compatible with a wide operating frequency band (0 – 8800 MHz)
• High shielding effectiveness (-110 dB) for minimal signal interference
• Environmentally friendly, RoHS compliant

Technical Specifications

With a straight body style and solder inner contact attachment method, the CommScope L4PNF-BH connector offers a secure and stable connection. It features a 50-ohm cable and connector impedance, ensuring consistent performance across various applications. The connector is also non-pressurizable and has a maximum operating voltage of 707 V (rms).

Designed to withstand harsh environmental conditions, the L4PNF-BH connector operates within a temperature range of -55 °C to +85 °C (-67 °F to +185 °F). It has passed rigorous corrosion, moisture resistance, thermal shock, and vibration tests, making it a reliable choice for your professional needs.

With a net weight of 145 g (0.32 lb), the CommScope L4PNF-BH connector is lightweight and easy to handle during installation. Its compact dimensions (66.04 mm length and 25.4 mm diameter) make it suitable for various applications without taking up much space.

As a testament to its quality, the L4PNF-BH connector is designed, manufactured, and distributed under an ISO 9001:2015 certified quality management system. It is also RoHS compliant, ensuring that it meets the highest environmental and safety standards.

Don't compromise on the quality and performance of your wireless and radiating connections. Invest in the CommScope Bulkhead N Female Connector (L4PNF-BH) and experience the difference for yourself. Upgrade your connections today!
