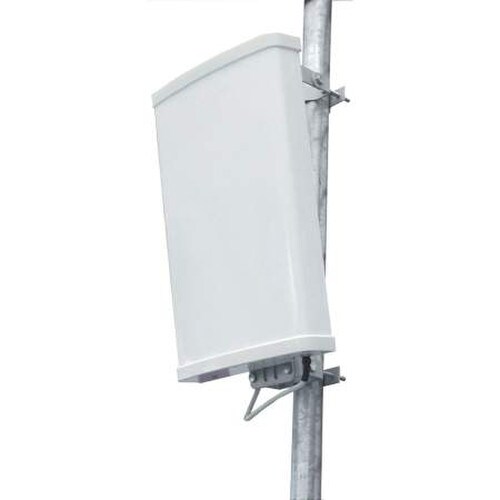

CommScope Cell-Max Low PIM Outdoor Antenna (CMAX-EXT-43-I53)
- Brand: CommScope
- P\N: CMAX-EXT-43-I53
- UPC: 646444560740
Do you have questions?
Please contact our experts for assistance.
Description
Description
CommScope Cell-Max Low PIM Outdoor Antenna (CMAX-EXT-43-I53)
Key Features and Benefits
- Wide operating frequency range: 698-960 MHz and 1710-2700 MHz
- High gain and low PIM for improved signal quality
- Directional antenna for focused coverage
- Weather-resistant design for indoor and outdoor use
- Easy pole mounting with supplied clamps
- Compact and lightweight for easy installation
Enhance Your Wireless Connectivity
Experience superior wireless performance with the CommScope Cell-Max Low PIM Outdoor Antenna (CMAX-EXT-43-I53). Designed for both indoor and outdoor applications, this directional antenna provides focused coverage and improved signal quality. With its wide operating frequency range, it is compatible with various wireless communication systems, making it an ideal choice for stadiums, arenas, and other large venues.
High Gain and Low PIM for Optimal Performance
The CommScope Cell-Max antenna boasts a high gain of up to 11 dBi, ensuring strong and reliable signal reception. Additionally, its low Passive Intermodulation (PIM) rating of -153 dBc minimizes signal interference, resulting in clear and stable connections. This combination of high gain and low PIM ensures optimal performance for your wireless communication needs.
Durable and Weather-Resistant Design
Constructed with a UV-resistant PVC radome, this antenna is built to withstand harsh weather conditions. Its IP65 ingress protection rating ensures that it remains protected from dust and water, making it suitable for both indoor and outdoor installations. The included pole mounting clamps allow for easy and secure installation on poles between 25-60 mm in diameter.
Technical Specifications
- Application: Indoor/Outdoor
- Antenna Type: Directional
- Polarization: Vertical
- Color: White (RAL 9016)
- Mounting: Poles between 25–60 mm with supplied clamps
- Number of Ports: 1
- Radome Material: PVC, UV resistant
- RF Connector Interface: 4.3-10 Female
- Dimensions: 331 mm x 98 mm x 620 mm
- Weight: 4.7 kg (net)
Upgrade your wireless communication system with the CommScope Cell-Max Low PIM Outdoor Antenna (CMAX-EXT-43-I53) and experience the difference in performance and reliability. Don't wait – order now and enhance your connectivity!
