CommScope Click On Hangers AVA/LDF5-50A 10 pack (L5CLICKB)
- Brand: CommScope
- P\N: L5CLICKB
- UPC: 646444995870
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

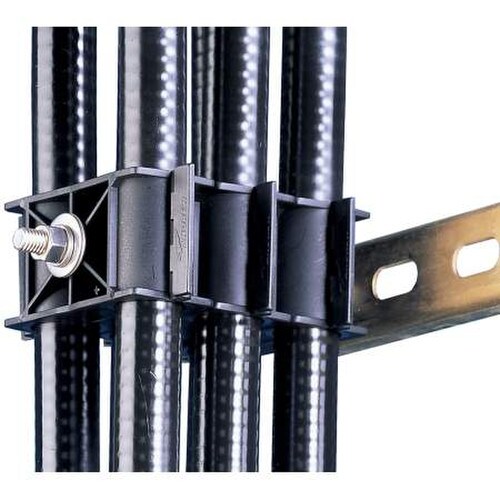

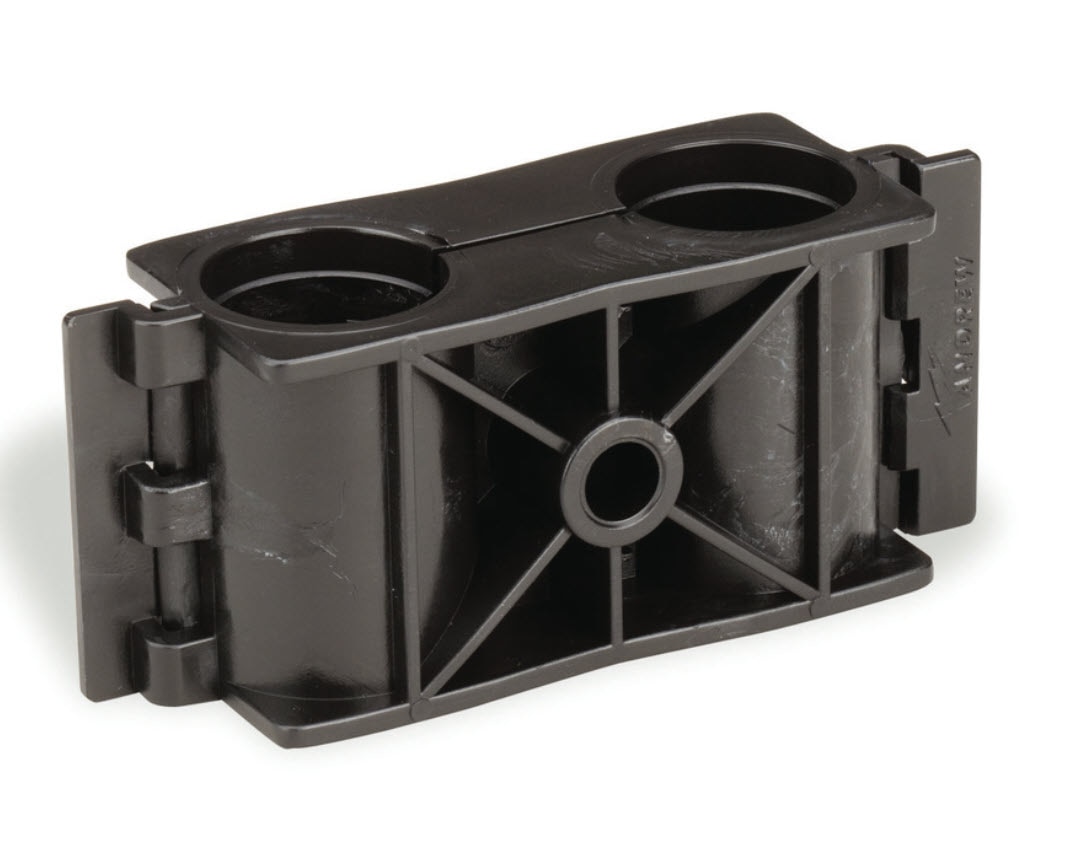

CommScope Click On Hangers: The Ultimate Cable Management Solution
Introducing the CommScope Click On Hangers (L5CLICKB), a reliable and efficient cable management solution designed to provide structural support for your AVA/LDF5-50A coaxial cables. These double click-on hangers are perfect for professionals who value organization and durability in their cable installations.
Key Features:
- Easy click-on installation for hassle-free cable management
- Supports up to two 7/8-inch coaxial cables per hanger
- Engineered plastic material for long-lasting durability
- UV resistant and able to withstand extreme temperatures
- Minimal impact on return loss and DTF effect
- Compliant with various regulatory standards, including ROHS and REACH-SVHC
Don't let disorganized cables hinder your productivity and performance. Invest in the CommScope Click On Hangers today and experience the difference that efficient cable management can make. Order now and take the first step towards a more organized and efficient workspace!
Specifications
Product Classification
| Product Type | Hanger kit |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Cables per Hanger | 2 |
| Color | Black |
| Hanger Type | Click-on hanger |
| Mounting | 3/8 in (M10) drilled cable ladder |
Dimensions
| Maximum Stack Height | 3 |
| Height | 51.1 mm | 2.012 in |
| Width | 56.9 mm | 2.240 in |
| Length | 111 mm | 4.370 in |
| Compatible Cable Diameter Range | 27.7–28.2 mm |
| Compatible Diameter, maximum | 28.2 mm | 1.110 in |
| Compatible Diameter, minimum | 27.5 mm | 1.083 in |
| Nominal Size | 7/8 in |
Electrical Specifications
| Return Loss Effect, maximum | 0.1 dB |
| DTF Effect, maximum | 0.1 dB |
Material Specifications
| Material Type | Engineered plastic |
Mechanical Specifications
| Vibration Survival | ≥4 hours at resonant frequency |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Environmental Strength Capability | Double cable weight |
| UV Resistance, minimum with no degradation | ≥100 hours exposure in accelerated UV life chamber |
Packaging and Weights
| Height, packed | 24.4 cm | 9.606 in |
| Width, packed | 13.4 cm | 5.276 in |
| Length, packed | 11.5 cm | 4.528 in |
| Packaging quantity | 10 |
| Weight, gross | 0.98 kg | 2.161 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
