  • CommScope Connector for 7/8in Cable N-Male EZfit (78EZNM)

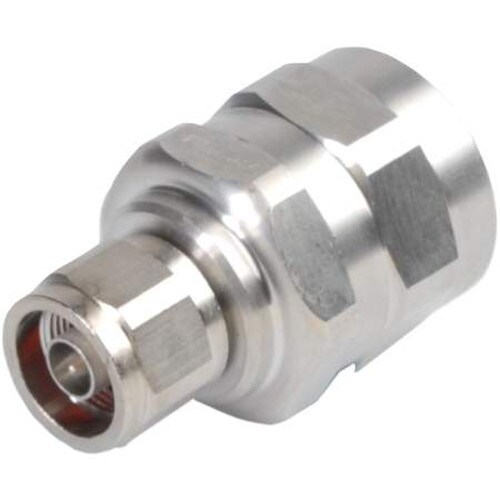

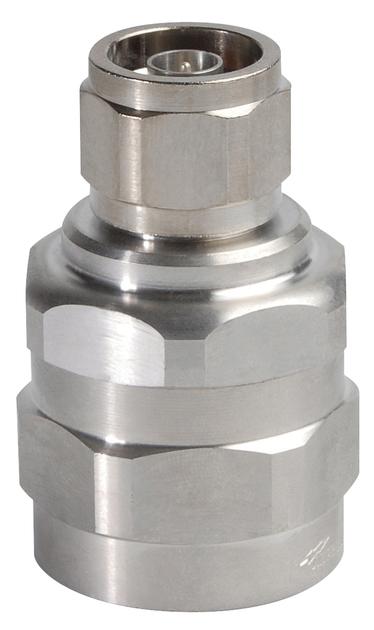

CommScope Connector for 7/8in Cable N-Male EZfit (78EZNM)

  • Brand: CommScope
  • P\N: 78EZNM
  • UPC: 888063939051
1 Review

Availability: In Stock


Your Price: $44.99

Do you have questions?

Please contact our experts for assistance.

Description

CommScope Connector for 7/8in Cable N-Male EZfit (78EZNM)

Key Features

  • High-quality wireless and radiating connector
  • Compatible with AVA5-50, AVA5-50FX, and FXL-780 cable families
  • Easy installation with clamp outer contact attachment method
  • Low insertion loss coefficient for optimal signal transmission
  • Wide operating frequency band (0 – 5000 MHz)
  • Robust mechanical and environmental specifications
  • Compliant with various regulatory standards

Upgrade your network connectivity with the CommScope Connector for 7/8in Cable N-Male EZfit (78EZNM) today and experience the difference in performance and reliability. Don't wait, order now!

Specifications

Product Classification

Product TypeWireless and radiating connector
Product BrandEZfit®
Product SeriesAVA5-50 | AVA5-50FX | AVA5RK-50
Ordering NoteCommScope® non-standard product

General Specifications

Body StyleStraight
Cable FamilyAVA5-50 | AVA5-50FX | FXL-780
Harmonized System (HS) Code85366910 (Coaxial cable and other coaxial electric conductors)
Inner Contact Attachment MethodCaptivated
Inner Contact PlatingSilver
InterfaceN Male
Mounting AngleStraight
Outer Contact Attachment MethodClamp
Outer Contact PlatingTrimetal
PressurizableNo

Dimensions

Length57.91 millimeter | 2.280 inch
Diameter37.08 millimeter | 1.460 inch
Nominal Size7/8 inch

Electrical Specifications

3rd Order IMD at Frequency-116 dBm @ 1800 MHz
3rd Order IMD Test MethodTwo +43 dBm carriers
Insertion Loss Coefficient, typical0.05
Cable Impedance50 ohm
Connector Impedance50 ohm
dc Test Voltage2000 V
Inner Contact Resistance, maximum2 mOhm
Insulation Resistance, minimum5000 mOhm
Operating Frequency Band0 – 5000 MHz
Outer Contact Resistance, maximum0.3 mOhm
Peak Power, maximum10 kW
RF Operating Voltage, maximum (vrms)707 V

Return Loss/VSWR

Frequency BandVSWRReturn Loss (dB)
50–1000 MHz1.02040.09
1000–1900 MHz1.02538.17
1900–2200 MHz1.03635.05
2200–2700 MHz1.05231.92
2700–3600 MHz1.06530.04
3600–5000 MHz1.10625.96

Mechanical Specifications

Attachment Durability25 cycles
Connector Retention Tensile Force1334.47 N | 300.000 lbf
Connector Retention Torque8.14 N-m | 72.001 in lb
Coupling Nut Proof Torque4.52 N-m | 39.997 in lb
Coupling Nut Retention Force444.82 N | 100.000 lbf
Coupling Nut Retention Force MethodMIL-C-39012C-3.25, 4.6.22
Insertion Force66.72 N | 15.000 lbf
Insertion Force MethodMIL-C-39012C-3.12, 4.6.9
Interface Durability500 cycles
Interface Durability MethodIEC 61169-16:9.5
Mechanical Shock Test MethodMIL-STD-202F, Method 213B, Test Condition C

Environmental Specifications

Operating Temperature-40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature-55 °C to +85 °C (-67 °F to +185 °F)
Attenuation, Ambient Temperature20 °C | 68 °F
Average Power, Ambient Temperature40 °C | 104 °F
Corrosion Test MethodMIL-STD-1344A, Method 1001.1, Test Condition A
Immersion Depth1 m
Immersion Test MatingMated
Immersion Test MethodIEC 60529:2001, IP68
Moisture Resistance Test MethodMIL-STD-202F, Method 106F
Vibration Test MethodIEC 60068-2-6
Water Jetting Test MatingMated
Water Jetting Test MethodIEC 60529:2001, IP66

Packaging and Weights

Weight, net152.89 g | 0.337 lbs.

Regulatory Compliance/Certifications

AgencyClassification
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHSCompliant/Exempted
CHINA-ROHSAbove maximum concentration value
UK-ROHSCompliant/Exempted

Downloads
