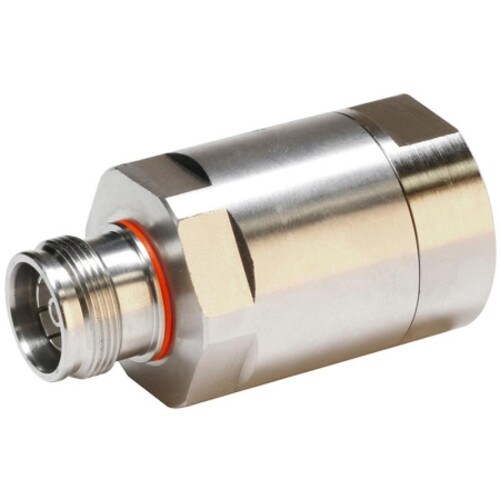

CommScope D-Class 4.3-10 Female for AVA5-50 and AVA5-50FX (A5HF-D)

Introducing the CommScope D-Class 4.3-10 Female Connector for AVA5-50 and AVA5-50FX

Upgrade your wireless and radiating connections with the CommScope D-Class 4.3-10 Female Connector (A5HF-D). Designed for use with 7/8-inch AVA5-50 and AVA5-50FX cables, this high-quality connector ensures optimal performance and reliability in your professional applications.

Key Features and Benefits

• Compatible with AVA5-50 and AVA5-50FX cable families
• 4.3-10 Female interface for seamless connectivity
• High-quality silver and trimetal plating for enhanced durability
• Excellent shielding effectiveness of -130 dB
• Wide operating frequency band of 0 – 5000 MHz
• Low insertion loss coefficient of 0.05
• Environmentally friendly, compliant with ROHS and REACH-SVHC standards

With its straight body style and captivated inner contact attachment method, the CommScope D-Class 4.3-10 Female Connector is easy to install and provides a secure connection. Moreover, its robust construction ensures long-lasting performance, even in harsh environments.

Technical Specifications

• Dimensions: Length - 64.01 mm (2.520 in), Diameter - 34.8 mm (1.370 in)
• Weight: 160.5 g (0.354 lb)
• Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
• Storage Temperature: -55 °C to +85 °C (-67 °F to +185 °F)
• Connector Impedance: 50 ohm
• Peak Power, maximum: 40 kW
• Return Loss/VSWR: 0–1000 MHz - 1.020 40.09, 1000–2700 MHz - 1.041 33.94, 2700–3800 MHz - 1.065 30.04

Whether you're upgrading your existing connections or setting up a new system, the CommScope D-Class 4.3-10 Female Connector is the perfect choice for professionals seeking reliable and high-performance connectivity solutions.

Quality You Can Trust

As a global leader in connectivity solutions, CommScope is committed to providing products that meet the highest standards of quality and performance. The D-Class 4.3-10 Female Connector is designed, manufactured, and distributed under an ISO 9001:2015 certified quality management system, ensuring that you receive a product you can rely on.

Don't settle for less when it comes to your connectivity needs. Invest in the CommScope D-Class 4.3-10 Female Connector for AVA5-50 and AVA5-50FX cables and experience the difference that quality makes. Upgrade your connections today!
