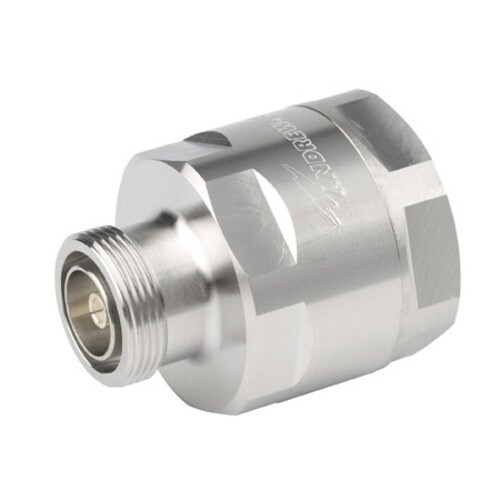

CommScope DIN Female Positive Stop for 1-1/4 Inch AVA6-50 Cable (AL6DF-PSA)

Introducing the CommScope DIN Female Positive Stop for 1-1/4 Inch AVA6-50 Cable (AL6DF-PSA)

Upgrade your wireless and radiating connector system with the high-quality CommScope DIN Female Positive Stop for 1-1/4 Inch AVA6-50 Cable (AL6DF-PSA). Designed for professionals who demand the best in performance and reliability, this connector is part of the HELIAX® | Positive Stop™ product series and is a standard product in Europe, the Middle East, and Africa.

Key Features and Benefits

• High-quality 7-16 DIN Female interface for optimal signal transmission
• Compatible with AVA6-50 cable family
• Easy installation with captivated inner contact and ring-flare outer contact
• Impressive shielding effectiveness of -130 dB for reduced interference
• Wide operating frequency band of 0 – 4000 MHz for versatile use
• Robust construction with silver inner contact plating and trimetal outer contact plating
• Compliant with various regulatory standards, including ISO 9001:2015, ROHS, and REACH-SVHC

Technical Specifications

With a straight body style and a nominal size of 1-1/4 inches, the AL6DF-PSA connector offers a maximum operating voltage of 1415 V and a maximum peak power of 40 kW. Its impressive electrical specifications include a 3rd order IMD at frequency of -116 dBm @ 1800 MHz and an insertion loss coefficient of 0.05. The connector is also designed to withstand a wide range of environmental conditions, with an operating temperature range of -55 °C to +85 °C (-67 °F to +185 °F).

Reliable and Durable Performance

Engineered for long-lasting performance, the AL6DF-PSA connector features a connector retention tensile force of 1779.29 N (400.000 lbf) and a connector retention torque of 10.85 N-m (96.004 in lb). Its mechanical and environmental specifications have been tested according to various industry standards, including MIL-STD-202F and IEC 61169-1, ensuring reliable performance in even the most demanding conditions.

Don't settle for less when it comes to your wireless and radiating connector system. Upgrade to the CommScope DIN Female Positive Stop for 1-1/4 Inch AVA6-50 Cable (AL6DF-PSA) today and experience the difference in performance and reliability that only a high-quality connector can provide. Order now and elevate your connectivity to new heights!
