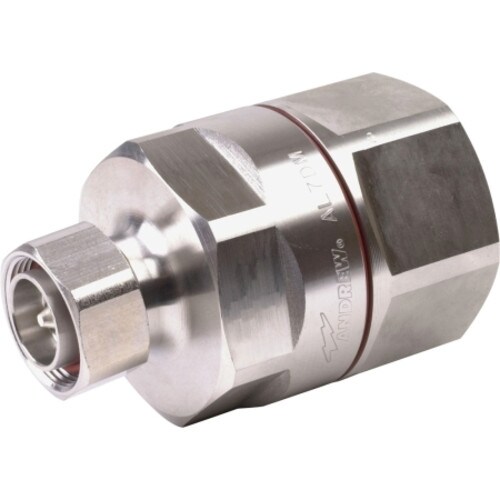

CommScope DIN Male Positive Stop 1-5/8-Inch VXL7 and AVA7-50 (AL7DM-PSA)

CommScope DIN Male Positive Stop Connector: Enhance Your Wireless Connectivity

Key Features and Benefits

• High-quality HELIAX® | Positive Stop™ connector for 1-5/8 inch cables
• Designed for AVA7-50 and AVA7RK-50 series cables
• Superior electrical performance with low insertion loss and high shielding effectiveness
• Easy installation with captivated inner contact and ring-flare outer contact
• Robust construction for long-lasting durability and reliability

Technical Specifications

• Body Style: Straight
• Inner Contact Plating: Silver
• Interface: 7-16 DIN Male
• Mounting Angle: Straight
• Outer Contact Plating: Trimetal
• Pressurizable: No
• Operating Frequency Band: 0 – 2700 MHz
• Connector Impedance: 50 ohm
• Return Loss/VSWR: 1.023 – 1.041 (depending on frequency)
• Attachment Durability: 25 cycles
• Operating Temperature: -55 °C to +85 °C (-67 °F to +185 °F)
• Weight, net: 775 g | 1.709 lb

Experience Unmatched Wireless Performance with CommScope's DIN Male Positive Stop Connector

Designed to provide a secure and reliable connection for your 1-5/8 inch AVA7-50 and AVA7RK-50 series cables, the CommScope DIN Male Positive Stop Connector (AL7DM-PSA) ensures optimal wireless performance. With its high-quality construction and superior electrical specifications, this connector is the perfect solution for professionals looking to enhance their wireless connectivity.

Featuring a straight body style and 7-16 DIN Male interface, the AL7DM-PSA connector offers easy installation with its captivated inner contact and ring-flare outer contact. Its robust construction ensures long-lasting durability and reliability, while its impressive electrical performance guarantees low insertion loss and high shielding effectiveness.

With an operating frequency band of 0 – 2700 MHz and a connector impedance of 50 ohms, the CommScope DIN Male Positive Stop Connector delivers consistent and reliable wireless performance. Its return loss/VSWR ranges from 1.023 to 1.041, depending on the frequency, ensuring minimal signal reflection and maximum signal transmission.

Designed to withstand harsh environmental conditions, the AL7DM-PSA connector operates at temperatures ranging from -55 °C to +85 °C (-67 °F to +185 °F). Its attachment durability of 25 cycles and weight of 775 g (1.709 lb) make it a reliable and long-lasting solution for your wireless connectivity needs.

Upgrade your wireless connectivity with the CommScope DIN Male Positive Stop Connector (AL7DM-PSA) and experience unmatched performance and reliability. Don't wait – order yours today!
