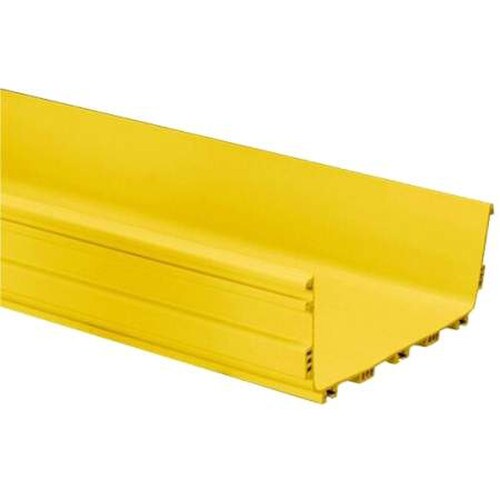

CommScope FiberGuide Horizontal Straight Section 6ft Yellow (FGS-MSHS-F)

CommScope FiberGuide Horizontal Straight Section 6ft Yellow (FGS-MSHS-F)

Key Features and Benefits

• Optimal cable management for central office, mobile switching center, and data center applications
• Maintains minimum bend radius for fiber cables, ensuring protection and performance
• Easy snap-together design for quick installation and modification
• Wide range of design tools available for engineers and installers
• High-quality engineering thermoplastic construction
• Compliant with various safety and environmental standards

Superior Cable Management Solution

The CommScope FiberGuide Horizontal Straight Section 6ft Yellow (FGS-MSHS-F) is a high-quality fiber raceway straight section designed to provide optimal cable management in central office, mobile switching center, and data center applications. With its innovative design and engineering, this product ensures total off-frame fiber cable protection, maintaining a minimum bend radius throughout the entire system, regardless of the system size.

Effortless Installation and Customization

Featuring a snap-together design, the FiberGuide Horizontal Straight Section is easy to install and modify, allowing engineers and installers to benefit from the large suite of available FiberGuide design tools. The product's horizontal orientation and straight section type make it versatile and adaptable to various cable management needs.

Technical Specifications

• Product Type: Fiber raceway straight section
• Product Brand: FiberGuide®
• Product Series: FGS
• Color: Yellow
• Dimensions: Height - 102 mm (4.016 in), Width - 347 mm (13.661 in), Length - 1829 mm (72.008 in)
• System Dimensions: 102 mm x 305 mm (4 in x 12 in)
• Material Type: Engineering Thermoplastic
• Flammability Rating: CSA S143, UL 2024, UL 94 V-0
• Halogen Characteristics: Blue Angel, TCO '99, WEEE
• Safety Standard: CSA, UL
• Weight, net: 5.9 kg (13.007 lb)

Upgrade your cable management system with the CommScope FiberGuide Horizontal Straight Section 6ft Yellow (FGS-MSHS-F) today and experience the difference in performance, protection, and ease of installation. Don't settle for less – choose the best for your central office, mobile switching center, or data center applications.
