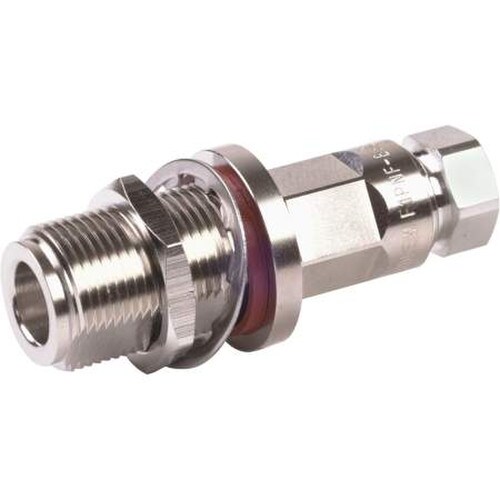

CommScope N Female for 1/4" Superflexible (F1PNF-BHC)

Introducing the CommScope N Female for 1/4" Superflexible (F1PNF-BHC)

Upgrade your wireless and radiating connector system with the high-quality CommScope N Female for 1/4" Superflexible (F1PNF-BHC). Designed for professionals who demand the best in performance and reliability, this connector is part of the renowned HELIAX® product series and is compatible with FSJ1-50A cable family. With its bulkhead body style and straight mounting angle, this connector ensures a secure and stable connection for your communication needs.

Key Features and Benefits

• Wide operating frequency band (0 – 6000 MHz) for versatile use
• High shielding effectiveness (-110 dB) for reduced interference
• Low inner and outer contact resistance for optimal signal transmission
• Robust mechanical and environmental specifications for durability and reliability
• Compliant with ISO 9001:2015, ROHS, and UK-ROHS standards

Technical Specifications

• Product Type: Wireless and radiating connector
• Product Brand: HELIAX®
• Product Series: FSJ1-50A
• Body Style: Bulkhead
• Cable Family: FSJ1-50A
• Inner Contact Plating: Silver
• Interface: N Female
• Mounting Angle: Straight
• Outer Contact Plating: Trimetal
• Pressurizable: No
• Dimensions: 22.1 mm x 22.1 mm x 51.05 mm
• Weight, net: 59.2 g | 0.131 lb

With its impressive electrical, mechanical, and environmental specifications, the CommScope N Female for 1/4" Superflexible (F1PNF-BHC) connector is designed to withstand the rigors of professional use. Its high-quality materials and construction ensure a long-lasting and reliable connection, making it the ideal choice for your communication system.

Don't compromise on quality and performance – upgrade your connector system with the CommScope N Female for 1/4" Superflexible (F1PNF-BHC) today and experience the difference a premium connector can make. Click the "Add to Cart" button now and take the first step towards a more reliable and efficient communication system.
