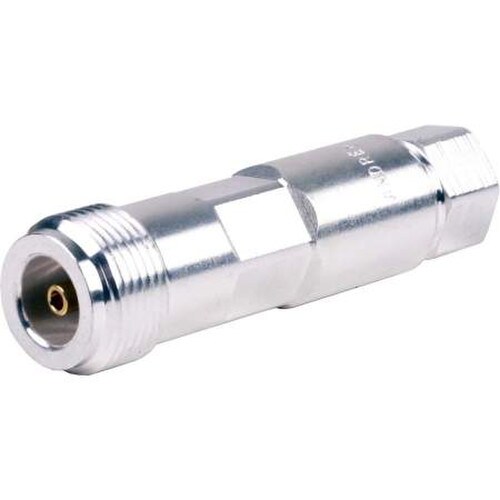

CommScope N Female for 1/4in Superflexible (F1PNF)

Introducing the CommScope N Female for 1/4in Superflexible (F1PNF)

Upgrade your wireless and radiating connector system with the high-quality CommScope N Female for 1/4in Superflexible (F1PNF). Designed for professionals who demand the best in performance and reliability, this connector is part of the renowned HELIAX® FSJ1-50A series. With its straight body style and gold-plated inner contact, this connector ensures optimal signal transmission and durability.

Key Features and Benefits

• Compatible with FSJ1-50A cable family
• Gold-plated inner contact for superior conductivity
• Self-clamping outer contact for easy installation
• Wide operating frequency band (0 – 8000 MHz)
• High shielding effectiveness (-110 dB)
• Robust mechanical and environmental specifications

Technical Specifications

The CommScope N Female for 1/4in Superflexible (F1PNF) boasts impressive electrical, mechanical, and environmental specifications. With a connector impedance of 50 ohms and a maximum operating voltage of 565 V, this connector is designed to handle demanding applications. Its mechanical specifications include a connector retention tensile force of 101 lbs and a coupling nut proof torque of 15 in-lbs. The connector is also built to withstand a wide range of temperatures, from -55°C to +85°C (-67°F to +185°F).

Regulatory Compliance and Certifications

Rest assured knowing that the CommScope N Female for 1/4in Superflexible (F1PNF) is designed, manufactured, and distributed under the ISO 9001:2015 quality management system. It is also compliant with ROHS, CHINA-ROHS, and UK-ROHS regulations, ensuring that it meets the highest standards for safety and environmental responsibility.

Upgrade Your Connector System Today

Don't settle for subpar connectors that can compromise your signal transmission and overall system performance. Invest in the CommScope N Female for 1/4in Superflexible (F1PNF) and experience the difference that a high-quality connector can make. With its impressive features, technical specifications, and regulatory compliance, this connector is the ideal choice for professionals who demand the best.

Upgrade your connector system with the CommScope N Female for 1/4in Superflexible (F1PNF) today and experience the difference in performance and reliability. Order now!
