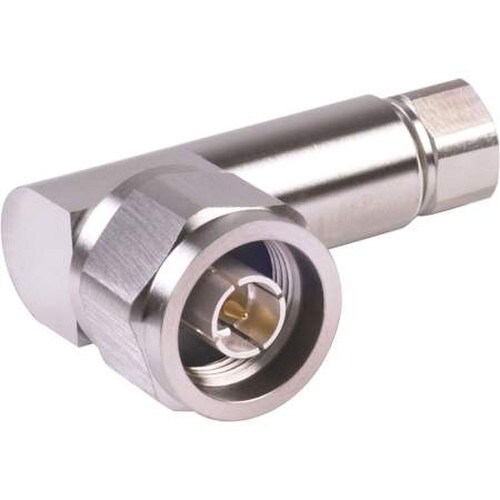

CommScope N-Male Right Angle 1/4in (F1TNR-HC)

Introducing the CommScope N-Male Right Angle 1/4in (F1TNR-HC)

Upgrade your wireless and radiating connector system with the high-quality CommScope N-Male Right Angle 1/4in (F1TNR-HC). Designed for professionals who demand the best in performance and reliability, this connector is part of the renowned HELIAX® product series and is specifically engineered for FSJ1-50A cables.

Key Features and Benefits

• Gold-plated inner contact for optimal signal transmission
• Trimetal outer contact plating for enhanced durability
• Self-clamping outer contact attachment method for easy installation
• Right angle design for versatile mounting options
• Wide operating frequency band (0 – 6000 MHz) for various applications
• High shielding effectiveness (-110 dB) for reduced interference
• Environmentally friendly, RoHS compliant materials

Technical Specifications

With a compact design measuring 51.82 mm in length, 33.02 mm in width, and 20.57 mm in height, the CommScope N-Male Right Angle 1/4in (F1TNR-HC) is perfect for tight spaces and challenging installations. The connector boasts impressive electrical specifications, including a maximum RF operating voltage of 565 V and a peak power capacity of 6.4 kW. Additionally, it offers excellent return loss and VSWR performance across a wide range of frequencies.

User Instructions

Installing the CommScope N-Male Right Angle 1/4in (F1TNR-HC) is a breeze, thanks to its self-clamping outer contact attachment method and captivated inner contact. Simply follow the manufacturer's guidelines for proper installation and enjoy a secure, high-performance connection.

Quality and Compliance

As part of the HELIAX® product series, the CommScope N-Male Right Angle 1/4in (F1TNR-HC) is designed, manufactured, and distributed under an ISO 9001:2015 certified quality management system. It is also RoHS compliant, ensuring that it meets the highest environmental standards.

Don't settle for less when it comes to your wireless and radiating connector needs. Upgrade to the CommScope N-Male Right Angle 1/4in (F1TNR-HC) today and experience the difference in performance and reliability that only a trusted brand like CommScope can deliver.
