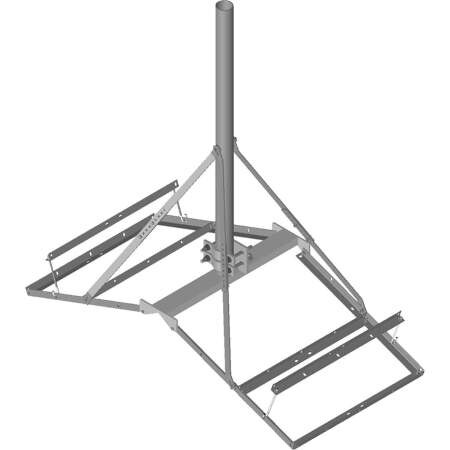

CommScope Non-Penetrating Peak Roof Frame (RT-PM-B)
- Brand: CommScope
- P\N: RT-PM-B
- UPC: 888063383847
Live Chat
Contact Us
Description
CommScope Non-Penetrating Peak Roof Frame (RT-PM-B)
Specifications
Product Classification
| Portfolio | CommScope® |
| Product Type | Non-penetrating roof frame |
| Warranty | One year |
General Specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 0 |
Dimensions
| Height | 965.2 mm | 38 inch |
| Width | 889 mm | 35 inch |
| Length | 1.219 m | 4 feet |
| Pipe Outer Diameter | 60.96 mm | 2.4 inch | 73.66 mm | 2.9 inch | 88.9 mm | 3.5 inch | 114.3 mm | 4.5 inch |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 47.6 kg | 104.94 lbs. |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
CHINA-ROHS | Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
