CommScope Pipe to Pipe Adapter Tapered Leg (MS-100-SSH)
- Brand: CommScope
- P\N: MS-100-SSH
- UPC: 646444458153
Live Chat
Contact Us
Description

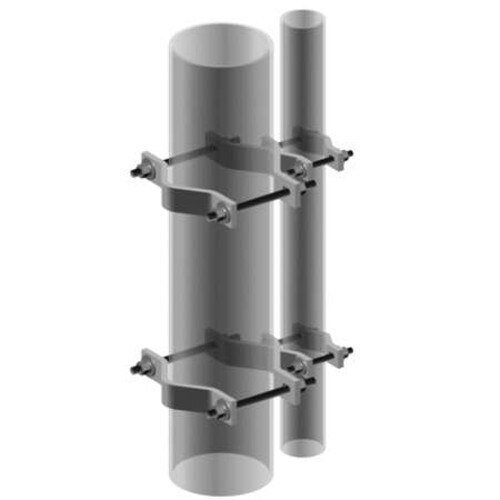

CommScope Pipe to Pipe Adapter Tapered Leg (MS-100-SSH)
Introducing the CommScope Pipe to Pipe Adapter Tapered Leg, a high-quality adapter designed to securely connect pipes with varying diameters. This adapter is an essential addition to your toolkit, providing a reliable and sturdy connection for your project needs. Made from hot dip galvanized steel, it ensures durability and longevity.
Key Features:
- Adapts 1-1/2 in to 3-1/2 in OD pipe to 4 in to 9 in OD pipe
- Hot dip galvanized steel for enhanced durability
- Easy installation with included clamp halves and threaded rod
- ISO 9001:2015 certified for quality assurance
- Supports a wide range of pipe diameters for versatile use
Don't settle for less when it comes to your structural support needs. Invest in the CommScope Pipe to Pipe Adapter Tapered Leg and experience the difference in quality and performance. Order yours today and enhance your toolkit with this essential adapter!
Specifications
Product Classification
| Product Type | Adapter |
General Specifications
| Mounting | Pipe-to-pipe |
| Tower Taper | Tapered |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 304.8 mm | 12 in |
| Length | 406.4 mm | 16 in |
| Mounting Diameter 2, maximum | 228.6 mm | 9 in |
| Mounting Diameter 2, minimum | 101.6 mm | 4 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
| Weight, net | 15.9 kg | 35.053 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
